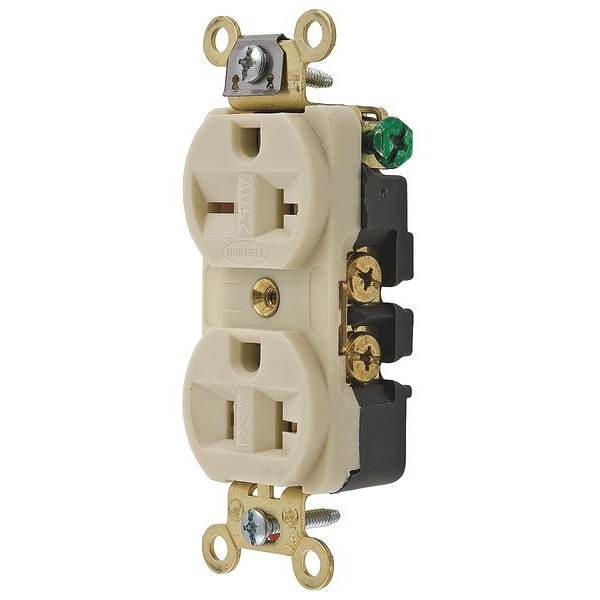

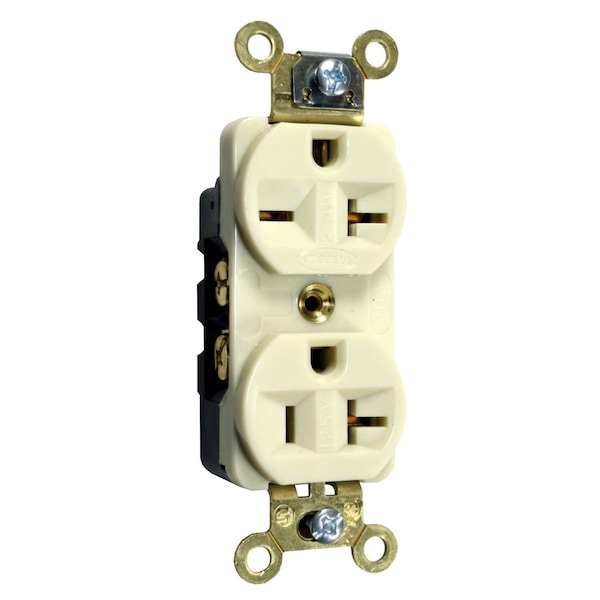

Receptacle, Duplex, 5-20R, 6-20R, 125/250V
| Item | Combination Duplex Receptacles |
|---|---|
| Type | 2 Pole, 3 Wire, Grounding |
| NEMA Configuration | 5-20, 6-20 |
| Amps | 20 |
| Voltage | 120/240V AC |
| Wiring Combination | Duplex Switch |
| Color | Ivory |
| Description/Special Features | Duplex Receptacle |
| Standards | CSA, C22.2, No. 42 File 285, UL Listed to UL498 File E2186 |
| Current Rating | 20 A |
| Mounting Hardware Material | Screw Mounting |
| Application | Heavy Duty |
| Display Size | Standard Sized Product |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Style | Finder Groove Face |
| Maximum Horsepower | 2 |
| Wire Size | #14 AWG to #10 AWG |
| Carton Quantity | 10 |
| Wattage | 5000 W |
| Length | 3.28 in |
| UPC | 783585000000 |
| Dimensions | 3.28 in x 1-1/2 in x 0.88 in |
| Environmental Rating | Indoor Dry Unless Protected By Additional Means |
| Amperage | 20 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Voltage Rating | 125/250 V |
| Number Of Wires | 3 |
| Brand | Hubbell Wiring Device-Kellems |
| Connectivity | Back and Side Wired |
| Series | Extra Heavy Duty |
| Height | 0.88 in |
| Phase | Single |
| Width | 1-1/2 in |
| Weight | 0.2 lb |
| Nema Rating | 5-20R, 6-20R |
| Number Of Poles | 2 |
| Grounding | Grounded |
| Minimum Operating Temperature | -40 deg F |
| Number of Gangs | 1 |
| Number of Poles & Wires | 2 Pole / 3 Wire |
| Market | Industrial |
| Polarized | Yes |
| For Environment | Dry |
| NEMA Enclosure Rating | 1 |
| Housing Material | Nylon |
| Surge Protection | No |
| Housing Color | Ivory |
| Flange Type | Non-Flanged |
| Wire Connection Type | Screw Terminals |
| Grade | Federal Specification |
| Overall Depth | 1.1 in |
| Connection Orientation | Straight |
| Additional Electrical Protection | Standard Protection |
| Additional Electrical Protections | Standard Protection |
| Wire Connection Types | Screw Terminals |
| Shrouded | No |
| Receptacle Type | Duplex |
| Wiring Method | Side, Back |
| Horsepower Rating | 2 HP |
| Mount Hole Center-to-Center Height | 3.3 in |
| Minimum Wire Size | 14 AWG |
| Includes Mounting Hardware | Yes |
| Number of Outlets | 2 |
| Maximum Wire Size | 10 AWG |
| For Location | Indoor |
| AFCI | No |
| UL 94 Flammability Rating | V-2 |
| Face Plate Height | 2.8 in |
| NEMA Receptacle Configuration | 5-20R, 6-20R |
| GFCI | No |
| Cover Type | No Cover |
| Primary Resistance Properties | 20 A |
| Key Resistance Properties | Standard Resistance |
| Maximum Operating Temperature | 167 deg F |
| Mount Type | Flush |
| Top Material | Nylon |
| Operating Temperatures | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Ground Screw Material | #8-32 Brass, Multiple Drive (Green) |
| Current Interrupting | Certified for current interrupting at full rated current |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only |
| Receptacle Grade | Heavy Duty Spec Grade |
| NEMA No. | 5-20R, 6-20R |
| Device Color | Ivory |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Wiring Style | 2 Circuit |
| Terminal Screw Material | #8-32 Brass, Multiple Drive |
| Flammability | UL 94 V-2 or better, Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA. |
| Auto Ground Clip Material | Stainless Steel |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Base Material | Reinforced PET |
| Horsepower | 2 |
| Face Style | Finder Groove |
| Mounting Screw Material | Steel-Zinc Plated |
| Mounting Strap Material | .050" Brass |
| Dielectric Voltage | Withstands 2,000V minimum |
| Face B | 5-20R |
| Power Contacts Material | .037" Brass |
| Certification | UL Listed, File E2186, Guide RTRT Fed Spec WC596G, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42 where applicable |
| Face A | 6 to 20 R |
| Rating | 20A, 125V/20A, 250V |
| Combo Wiring Method | Back, Side |
| Package Quantity | 1 |
