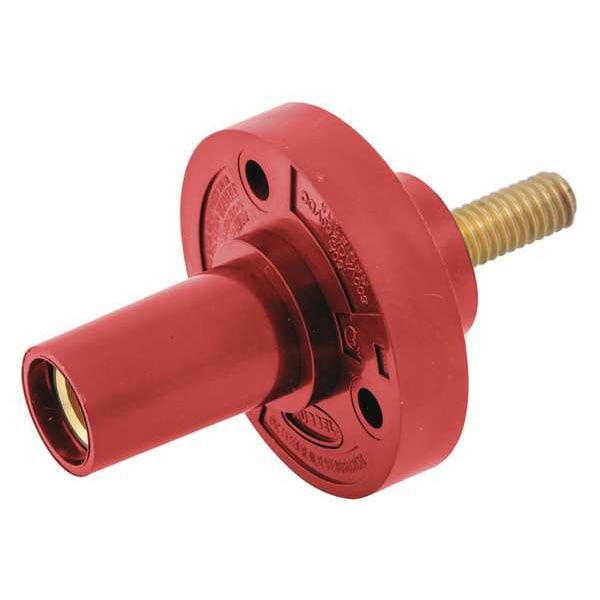

Este receptáculo de color rojo con perno y nariz cónica es ideal para tus necesidades de conexión eléctrica. Fabricado por Hubbell Wiring Device-Kellems para garantizar calidad y seguridad.
| Item | Receptacle |
|---|---|
| Type | Stud Type |
| Series | 15 |
| Terminal Connection | Threaded Stud |
| Male/Female | Female |
| Current Rating | 150 A |
| Voltage Rating | 250V DC, 600V AC |
| NEMA Rating | 12, 3R, 4X |
| Material | Thermoplastic Elastomer |
| Single Pole Device Style | Taper Nose |
| Power Terminals Wire Size | #8 to #2 AWG |
| Amps AC/DC | 150 AC/DC |
| Conductor Material | Brass |
| Mounting | Threaded Stud |
| Color | Red |
| Fits | UL1691 |
| Cable Range | N/A |
| Standards | ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed |
| Amps AC | 150 A |
| Housing Material | Thermoplastic Elastomer |
| Minimum Wire Size | 8 AWG |
| Overall Width | 0.86 in |
| Flange Shape | Round |
| Contact Material | Brass |
| Terminal Connection Type | Threaded Stud |
| NEMA Enclosure Rating | 3R, 12, 4X |
| Connection Orientation | Straight |
| Includes Mounting Hardware | Yes |
| End Type | Taper Nose |
| Phase | Single |
| Housing Color | Red |
| Maximum Wire Size | 2 AWG |
| Compatible with Series | 15 |
| Gender | Female |
| For Location | Indoor |
| Overall Length | 2.88 in |
| Mounting Style | Through Hole Mounting |
| Application | Extra Heavy Duty Industrial |
| Style | Female |
| Item Type | Female Receptacle |
| Wire Size | #4 AWG Type SC/PPC Wire |
| Current / Amperage Rating | 150 A |
| Performance | Electrical - Amperage Rating - 150A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #8 to #2 AWG |
| Number Of Poles | 1-Pole |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Industry Standard(s) | National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12 |
| Material - Mounting Hardware | Screw Mounting |
| Amperage Rating | 150 A |
| Voltage Rating Description | 600V AC/DC |
| Connectivity | Threaded Stud |
| Display Size | Standard Sized Product |
| Wattage | 90,000 |
| Number Of Wires | None |
| Package Quantity | 1 |
