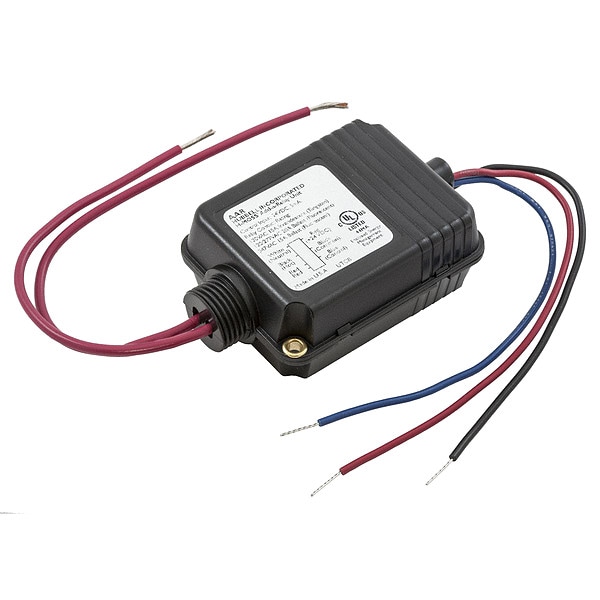

Relevador, Usar con CU300A, CU300M, CU300HD
| Item - Motion Sensing and Dimming | Power and Relay Packs |
|---|---|
| Item | Auxiliary Relay |
| Communication Method - Motion Sensing and Dimming | Hard Wired |
| Material | Thermoplastic |
| Dimensions | 3.69 in x 2.33 in x 1.36 in |
| Operating Voltage - Motion Sensing and Dimming | 24 V DC |
| Color - Motion Sensing and Dimming | Black |
| For Use With | Mfr. No. CU300A, CU300M, CU300HD |
| Lighting Technology | Fluorescent, Incandescent |
| Height | 1-3/8 in |
| Width | 3-3/4 in |
| Depth | 2-3/8 in |
| Includes | Add-A-Relay, H-Moss System, Lighting Controls, Switches |
| Standards | ASHRAE 90.1, cULus Listed |
| Voltage | 24VDC |
| Color | Black |
| Type | Accessories |
| Input Voltage | 24V DC |
| Communication Method | Hard Wired |
| Compatible with Brand | Hubbell Wiring |
| Overall Depth | 3.69 in |
| Manufacturer Warranty | Limited |
| Maximum Operating Temperature | 104 deg F |
| Minimum Operating Temperature | 32 deg F |
| Overall Height | 1.36 in |
| Overall Width | 2.33 in |
| Compatible with Series | Hubbell CU |
| Output Voltage | 24V DC |
| Use With - Motion Sensing and Dimming | Hubbell CU Series Control Unit |
| Description/Special Features | Desired to Switch More than One Circuit when Occupancy is Sensed |
| Load Capacity | Incandescent-0 to 1800 watts, 120V Ballast- 0 to 2400 watts, 230V Ballast- 0 to 3680 watts, 277V Ballast- 0 to 5540 watts, 347V Ballast- 0 to 5205 watts |
| Style | Relays |
| Control Output | Relay Contacts |
| Product Type | Control-units |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Device Color | Black |
| Voltage Rating Description | 24V DC |
| Operating Temperature | 32°F to 104°F (0°C to 40°C); 0% to 90% non condensing relative humidity |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Material - Mounting Hardware | Screw Mounting |
| Length | 3.69 in |
| Power Input | 24V DC nominal, 33mA from Hubbell CU series control unit |
| Item Type | Accessories |
| Max. Capacity @ 120VAC | 8A (LED), 16A (Fluorescent Ballast, Incandescent) |
| Storage Temperature | -20°F to 150°F ; 0% to 90% non condensing relative humidity |
| Operating Cycles | 6,000 Cycles Minimum |
| Control Unit Type | Add-a Relay |
| Package Quantity | 1 |
