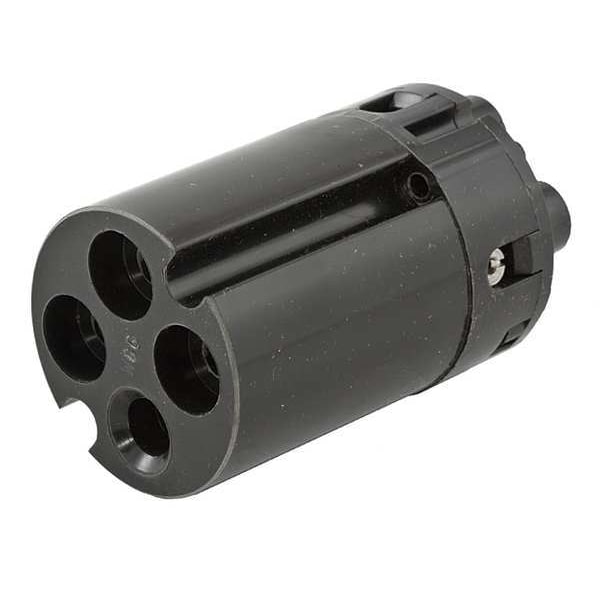

Replacement Iec Pin and Sleeve Interior
| Item | Replacement Iec Pin and Sleeve Interior |
|---|---|
| Fits Brand | Hubbell Wiring Device-Kellems |
| For Use With Mfr. Model Number | HBL460C5W, HBL460C7W, HBL460C9W, HBL460R5W, HBL460R7W, HBL460R9W |
| Overall Length | 6.68 in |
| Number of Poles | 3 |
| Overall Width | 3-1/4 in |
| Grounding Style | IEC |
| Color | Black |
| Compatible Device Current | 60 A |
| Overall Height | 3-1/4 in |
| Minimum Operating Temperature | -40 deg C |
| For Use With | Connectors, Receptacles |
| Voltage Rating | 250V AC |
| Current Rating | 60 A |
| Number of Wires | 4 |
| Material | Thermoset |
| Compatible Device Wire Number | 4 |
| Maximum Operating Temperature | 75 deg C |
| Gender | Female |
| Type | Replacement Interior |
| Connectivity | Pressure Terminal Screws |
| Current / Amperage Rating | 60 A |
| Voltage Rating Description | 3 Phase 250 VAC |
| Item Type | Replacement Interior |
| Material - Mounting Hardware | Screw Mounting |
| Style | For Receptacles/Connectors |
| Industry Standard(s) | UL Listed |
| Series | Accessories |
| Amperage Rating | 60 A |
| Display Size | Standard Sized Product |
| Environmental Conditions | Watertight When Installed |
| Nema Rating | Non-NEMA |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 classification Environmental - Ingress Protection - IP67 Suitability Environmental - Operating Temperatures - Max. Continuous:75°C Min. Continuous:-40°C w/o impact Mechanical - Impact Resistance - In accordance with UL746C Mechanical - Product Identification - Ratings are a part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions |
| Package Quantity | 1 |
