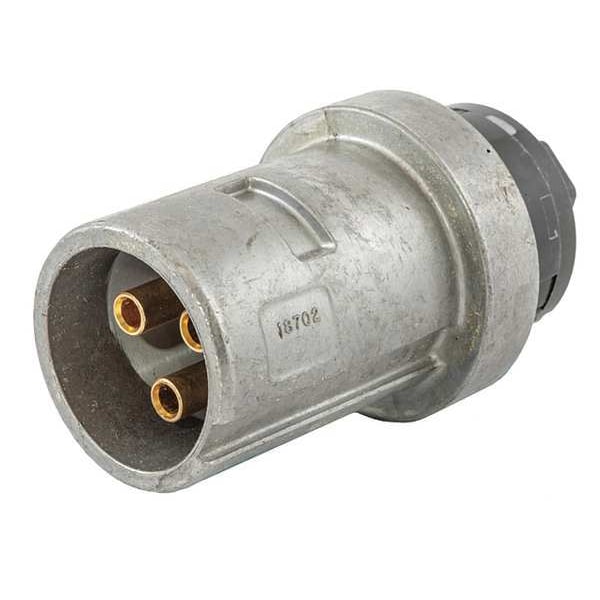

Replacmnt Insulgrip Pin and Sleeve Inter
| For Use With Mfr. Model Number | HBL330CS2WR, HBL330PS2W, HBL330RS2WR |
|---|---|
| Item | Replacement Insulgrip Pin and Sleeve Interior |
| Fits Brand | Hubbell Wiring Device-Kellems |
| Overall Width | 2.418 in |
| Overall Length | 3.978 in |
| Voltage Rating | 250V DC, 600V AC |
| Overall Height | 2.418 in |
| Number of Poles | 2 |
| Compatible Device Current | 30 A |
| Color | Black |
| Minimum Operating Temperature | -40 deg C |
| Number of Wires | 3 |
| For Use With | Plugs |
| Grounding Style | Style 2 |
| Material | Composite |
| Current Rating | 30 A |
| Gender | Male |
| Compatible with Series | Insulgrip |
| Maximum Operating Temperature | 75 deg C |
| Compatible Device Wire Number | 3 |
| Type | Replacment Interior |
| Display Size | Standard Sized |
| Industry Standard(s) | UL Listed |
| Connectivity | Pressure Terminal Screws |
| Current / Amperage Rating | 30 A |
| Material - Mounting Hardware | Cord Mounted |
| Cord Type | All Portable |
| Environmental Conditions | Watertight |
| Item Type | Replacement Interior |
| Amperage Rating | 30 A |
| Nema Rating | Non-NEMA |
| Style | For Plugs,Style 2 Grounding |
| Series | Accessories |
| Voltage Rating Description | 600/250V AC/DC |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 classification Environmental - Ingress Protection - IP67 Suitability Environmental - Operating Temperatures - Maximum Continuous: 75° C Minimum -40° C w/o impact Mechanical - Impact Resistance - In accordance with UL746C Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
