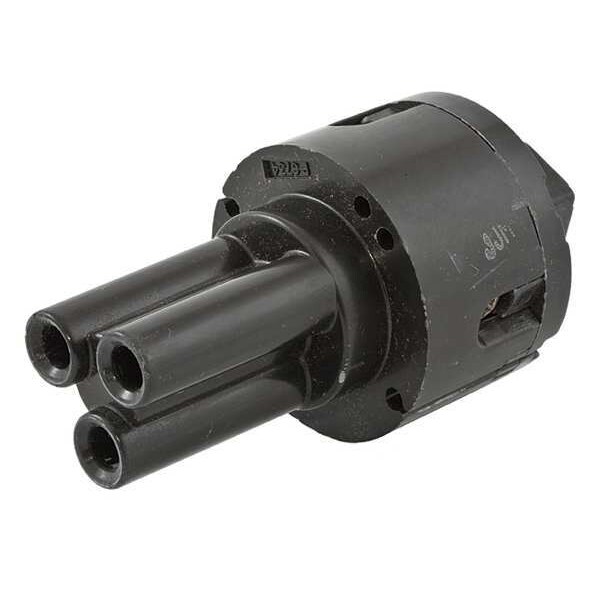

Replacmnt Insulgrip Pin and Sleeve Inter
| Fits Brand | Hubbell Wiring Device-Kellems |
|---|---|
| Item | Replacement Insulgrip Pin and Sleeve Interior |
| For Use With Mfr. Model Number | HBL530CS1W, HBL530PS1WR, HBL530RS1W |
| Compatible Device Current | 30 A |
| Number of Poles | 4 |
| Maximum Operating Temperature | 75 deg C |
| Minimum Operating Temperature | -40 deg C |
| Compatible with Series | Insulgrip |
| Compatible Device Wire Number | 5 |
| Grounding Style | Style 1 |
| Overall Height | 2.418 in |
| Color | Black |
| For Use With | Connectors, Receptacles |
| Current Rating | 30 A |
| Gender | Female |
| Voltage Rating | 250V DC, 600V AC |
| Overall Width | 2.418 in |
| Number of Wires | 5 |
| Overall Length | 3.978 in |
| Material | Thermoplastic |
| Type | Replacment Interior |
| Series | Accessories |
| Environmental Conditions | Watertight When Installed |
| Style | For Receptacles/Connectors,Style 1 Grounding |
| Display Size | Standard Sized Product |
| Voltage Rating Description | 600/250V AC/DC |
| Current / Amperage Rating | 30 A |
| Item Type | Replacement Interior |
| Amperage Rating | 30 A |
| Industry Standard(s) | UL Listed |
| Material - Mounting Hardware | Screw Mounting |
| Nema Rating | Non-NEMA |
| Connectivity | Pressure Terminal Screws |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 classification Environmental - Ingress Protection - IP67 Suitability Environmental - Operating Temperatures - Maximum Continuous: 75° C Minimum -40° C w/o impact Mechanical - Impact Resistance - In accordance with UL746C Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
