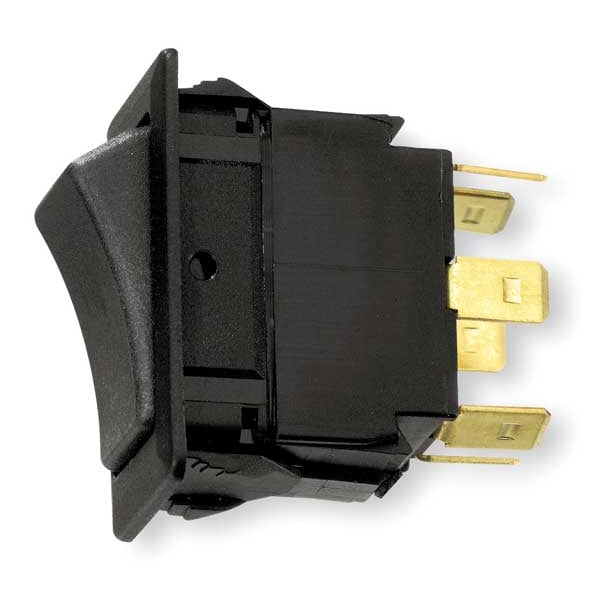

Interruptor basculante, DPDT, 6 conexiones
| Item | Marine Rocker Switch |
|---|---|
| Contact Form | DPDT |
| Number of Connections | 6 |
| Switch Function | On, On/Off |
| Terminals | 0.250 in Quick Connect Tab |
| Mounting Hole | 0.83 in x 1.45 in |
| AC Contact Rating | Not Applicable |
| DC Contact Rating | 5 A @ 12 V |
| Operating Temp. Range | 32 to 100 deg F |
| Body Color | Black |
| Special Features | Dual Fuel Tanks, Navigation Lights, Use with Horn, Wipers |
| Switch Color | Black |
| Recommended Use | Dual Fuel Tanks, Navigation Lights, Wipers |
| Carton Quantity | 10 |
| Product Type | Marine Rocker Switch |
| IP Rating | Not Applicable |
| Color | Black |
| Includes Lamp Module | No Lamp Module Included |
| Number of Positions | 3 |
| Mounting Hole Length | 1.45 in |
| Lamp Type | No Lamp Module Included |
| Lamp Voltage - Maximum | 12 V DC |
| Includes Lens | No Lens Included |
| Horsepower | Not Rated |
| Manufacturer Warranty Length | 1 yr |
| Overall Width | 1.71 in |
| Mounting Hole Width | 0.83 in |
| Switch Function Configuration | On, On/Off |
| Overall Height | 0.96 in |
| Overall Depth | 1.07 in |
| Lens Color | Not Applicable |
| Lamp Module Type | Full Voltage |
| Operating Temperature - Minimum | 32 deg F |
| Operating Temperature - Maximum | 100 deg F |
| Operator Illumination | Non-Illuminated |
| NEMA Enclosure Rating | No Enclosure |
| Terminal Connection Type | Spade Terminals |
| Package Quantity | 1 |
