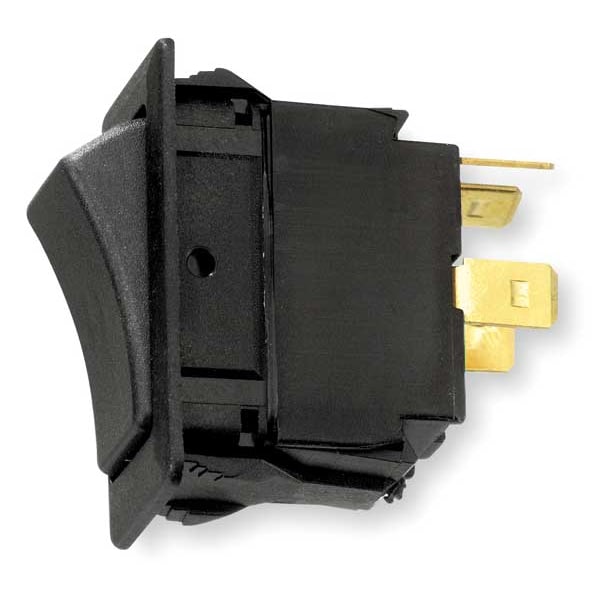

Interruptor basculante, DPST, 4 conexiones.
| Item | Marine Rocker Switch |
|---|---|
| Contact Form | DPST |
| Number of Connections | 4 |
| Switch Function | On/Off |
| Terminals | 0.250 in Quick Connect Tab |
| Mounting Hole | 7/8 in x 1-1/2 in |
| AC Contact Rating | Not Applicable |
| DC Contact Rating | 5 A @ 12 V |
| Body Color | Black |
| Operating Temp. Range | 32 to 100 deg F |
| Special Features | Accessories, Lights, Use with Horn |
| Recommended Use | Accessories, Lights |
| Switch Color | Black |
| Carton Quantity | 10 |
| Product Type | Marine Rocker Switch |
| IP Rating | Not Applicable |
| Color | Black |
| Overall Depth | 1.07 in |
| Includes Lens | No Lens Included |
| Lamp Type | No Lamp Module Included |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Hole Width | 0.88 in |
| Terminal Connection Type | Spade Terminals |
| Lamp Module Type | Full Voltage |
| Operating Temperature - Minimum | 32 deg F |
| Operator Illumination | Non-Illuminated |
| Overall Width | 1.71 in |
| Lens Color | Not Applicable |
| Mounting Hole Length | 1-1/2 in |
| Includes Lamp Module | No Lamp Module Included |
| Horsepower | Not Rated |
| Overall Height | 0.96 in |
| Switch Function Configuration | On/Off |
| Manufacturer Warranty Length | 1 yr |
| Number of Positions | 2 |
| Lamp Voltage - Maximum | 12 V DC |
| Operating Temperature - Maximum | 100 deg F |
| Package Quantity | 1 |
