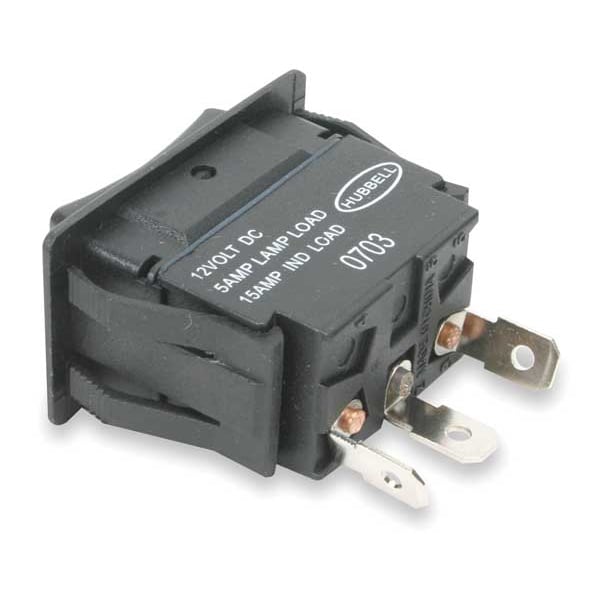

Interruptor basculante, SPDT, 3 conexiones
| Item | Marine Rocker Switch |
|---|---|
| Contact Form | SPDT |
| Number of Connections | 3 |
| Switch Function | Momentary On/Off/Momentary On |
| Terminals | 0.250 in Quick Connect Tab |
| Mounting Hole | 7/8 in x 1-1/2 in |
| AC Contact Rating | Not Applicable |
| DC Contact Rating | 5 A @ 12 V |
| Switch Color | Black |
| Special Features | Trim Tabs, Use with Horn |
| Operating Temp. Range | 32 to 100 deg F |
| Body Color | Black |
| Recommended Use | Trim Tabs |
| Carton Quantity | 10 |
| Product Type | Marine Rocker Switch |
| IP Rating | Not Applicable |
| Color | Black |
| Manufacturer Warranty Length | 1 yr |
| Lamp Type | No Lamp Module Included |
| Includes Lens | No Lens Included |
| Operating Temperature - Minimum | 32 deg F |
| Includes Lamp Module | No Lamp Module Included |
| Lamp Voltage - Maximum | 12 V DC |
| Overall Height | 0.96 in |
| Lamp Module Type | Full Voltage |
| Operating Temperature - Maximum | 100 deg F |
| Horsepower | Not Rated |
| NEMA Enclosure Rating | No Enclosure |
| Operator Illumination | Non-Illuminated |
| Mounting Hole Width | 0.88 in |
| Mounting Hole Length | 1-1/2 in |
| Number of Positions | 3 |
| Overall Width | 1.71 in |
| Lens Color | Not Applicable |
| Terminal Connection Type | Spade Terminals |
| Switch Function Configuration | On, On/Off |
| Overall Depth | 1.07 in |
| Package Quantity | 1 |
