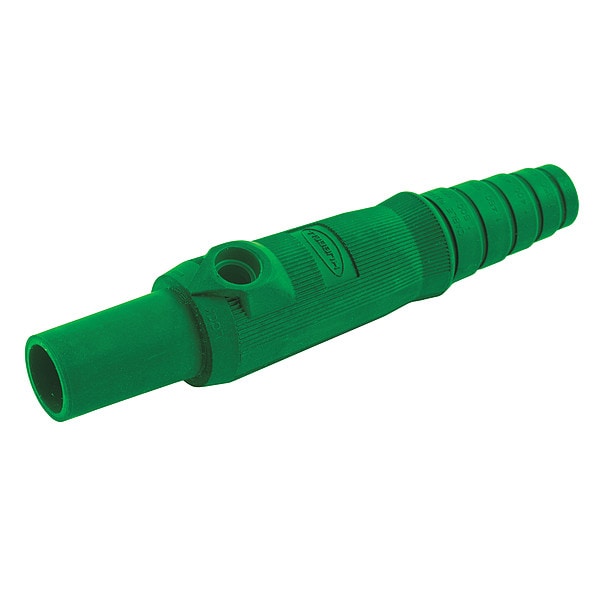

Conector de polo único, hembra, color verde. Producto de alta calidad para conexiones eléctricas seguras y confiables.
| Item | Single Pole Connector Body |
|---|---|
| Type | Female |
| Series | Series 15 |
| Terminal Connection | Single Pin |
| Current Rating | 150 A |
| Voltage Rating | 250V DC, 600V AC |
| Fits | UL1691 |
| Standards | UL, cUL |
| Color | Green |
| Mounting | Replacement Body, Accessory, Female |
| Amps AC | 150 A |
| Overall Width | 1 in |
| Housing Material | Thermoplastic Elastomer |
| Gender | Female |
| Housing Color | Green |
| Compatible with Series | 15 |
| NEMA Enclosure Rating | 3R, 12, 4X |
| Overall Height | 4 in |
| Amperage Rating | 150 A |
| Current / Amperage Rating | 150 A |
| Industry Standard(s) | National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12 |
| Style | Replacement Body, Female |
| Voltage Rating Description | 600V AC/DC |
| Package Quantity | 1 |
