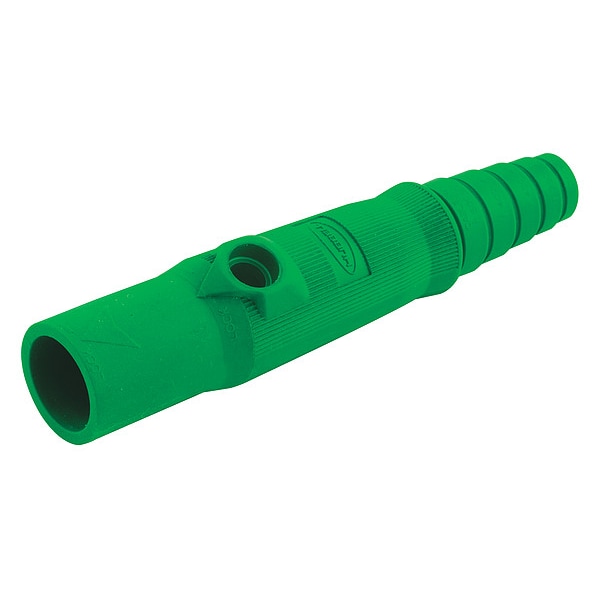

Conector de polo único macho, color verde. Ideal para aplicaciones eléctricas industriales. Marca Hubbell Wiring Device-Kellems.
| Item | Single Pole Connector Body |
|---|---|
| Type | Male |
| Series | Series 15 |
| Terminal Connection | Single Pin |
| Current Rating | 150 A |
| Voltage Rating | 250V DC, 600V AC |
| Standards | UL, cUL |
| Fits | UL1691 |
| Color | Green |
| Amps AC | 150 A |
| Housing Color | Green |
| Overall Width | 1 in |
| Compatible with Series | 15 |
| Gender | Male |
| NEMA Enclosure Rating | 3R, 12, 4X |
| Housing Material | Thermoplastic Elastomer |
| Overall Height | 4.54 in |
| Amperage Rating | 150 A |
| Industry Standard(s) | National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12 |
| Voltage Rating Description | 600V AC/DC |
| Current / Amperage Rating | 150 A |
| Style | Replacement Body, Female |
| Package Quantity | 1 |
