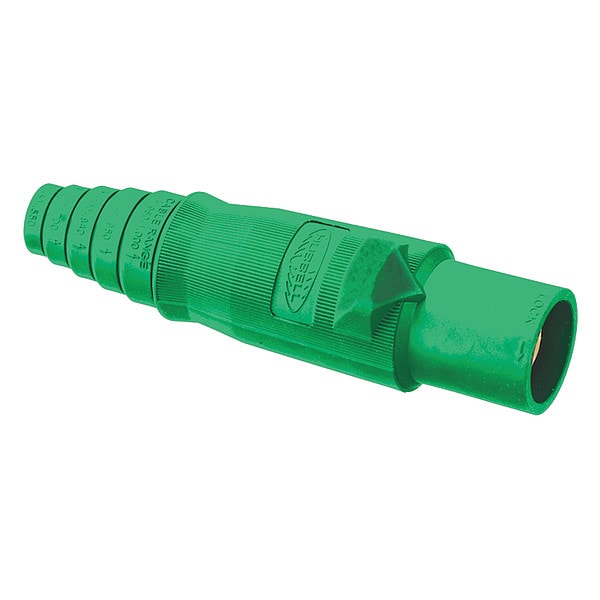

Este conector de polo único para hombre en color verde es ideal para conexiones eléctricas seguras y confiables. Fabricado con materiales de alta calidad para garantizar un rendimiento óptimo.
| Item | Single Pole Connector Body |
|---|---|
| Type | Male |
| Series | Series 16 |
| Terminal Connection | Single Pin |
| Current Rating | 400 A |
| Voltage Rating | 250V DC, 600V AC |
| Color | Green |
| Standards | UL, cUL |
| Fits | UL1691 |
| Gender | Male |
| NEMA Enclosure Rating | 3R, 12, 4X |
| Overall Width | 1.78 in |
| Housing Material | Thermoplastic Elastomer |
| Housing Color | Green |
| Overall Height | 6.74 in |
| Compatible with Series | 16 |
| Current / Amperage Rating | 400 A |
| Amperage Rating | 400 A |
| Style | Replacement Body, Male |
| Voltage Rating Description | 600V AC/DC |
| Industry Standard(s) | UL 498 And UL1691 |
| Performance | Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of the device |
| Package Quantity | 1 |
