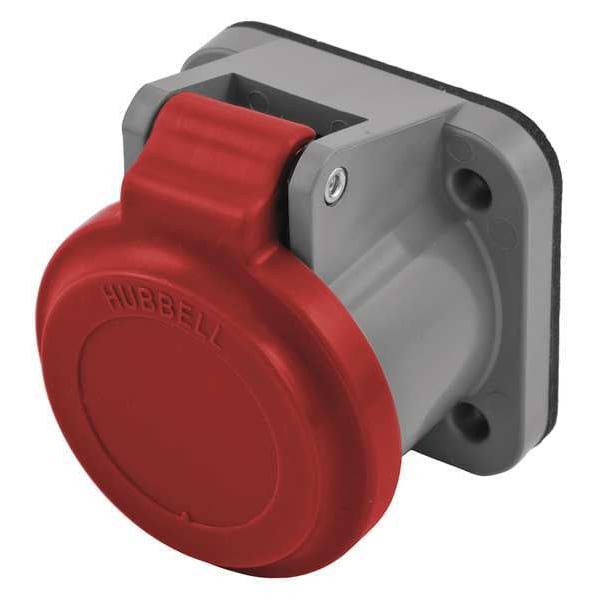

Conector de polo único con cubierta no metálica en color rojo, ideal para aplicaciones eléctricas. Fabricado por Hubbell Wiring Device-Kellems, líder en dispositivos y conectores eléctricos.
| Item | Single Pole Connector |
|---|---|
| Type | Non-Met Cover |
| Series | Series 16 |
| Terminal Connection | Single Pin |
| Voltage Rating | 600V AC/250V DC |
| Color | Red |
| Fits | UL1691 |
| Standards | cUL, UL |
| For Use With | UL1691 |
| Material | Nylon |
| Mounting | Weather Protective Cover |
| Amps AC | 400 A |
| Overall Length | 2.2 in |
| Overall Height | 2.57 in |
| Resistance Properties | Weather Resistant |
| Compatible with Series | 16 |
| Overall Width | 2.03 in |
| NEMA Enclosure Rating | 3R, 12, 4X |
| Compatible Device Current | 400 A |
| Product Type | Weather Protective Cover |
| Current / Amperage Rating | 400 A |
| Item Type | Cover |
| Application | Weatherproofing |
| Amperage Rating | 400 A |
| Construction | Fabricated |
| Display Size | 1 Device |
| Material - Mounting Hardware | Mounts to Device |
| Industry Standard(s) | National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12 |
| Voltage Rating Description | 600V AC/DC |
| Package Quantity | 1 |
