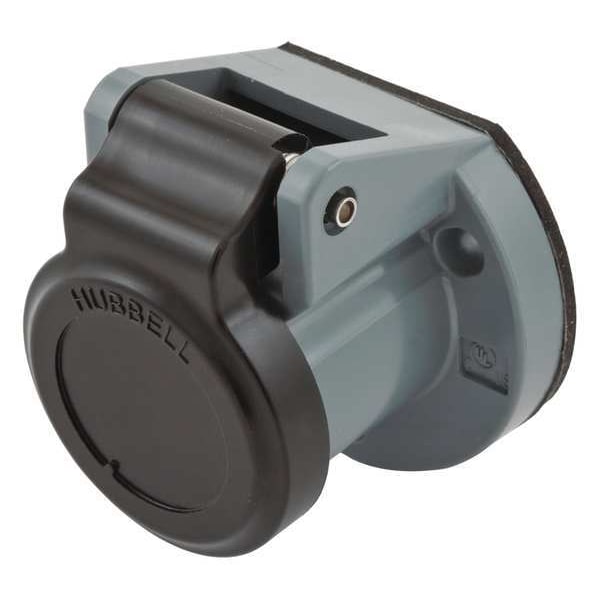

Conector de una sola polo con cubierta para climas adversos, en color negro. Ideal para aplicaciones industriales y comerciales.
| Item | Single Pole Connector |
|---|---|
| Type | Weather Cover |
| Series | Series 15 |
| Terminal Connection | Single Pin |
| Voltage Rating | 600V AC/250V DC |
| Standards | cUL, UL |
| Amps AC | 150 A |
| Conductor Material | Brass |
| For Use With | UL1691 |
| Material | Thermoplastic Elastomer |
| Color | Black |
| Fits | UL1691 |
| Overall Height | 2.03 in |
| Compatible with Series | 15 |
| NEMA Enclosure Rating | 3R, 12, 4X |
| Overall Width | 1.49 in |
| Product Type | Weather Protective Cover |
| Resistance Properties | Weather Resistant |
| Compatible Device Current | 150 A |
| Style | Receptacle |
| Current / Amperage Rating | 150 A |
| Amperage Rating | 150 A |
| Industry Standard(s) | National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12 |
| Voltage Rating Description | 600V AC/DC |
| Package Quantity | 1 |
