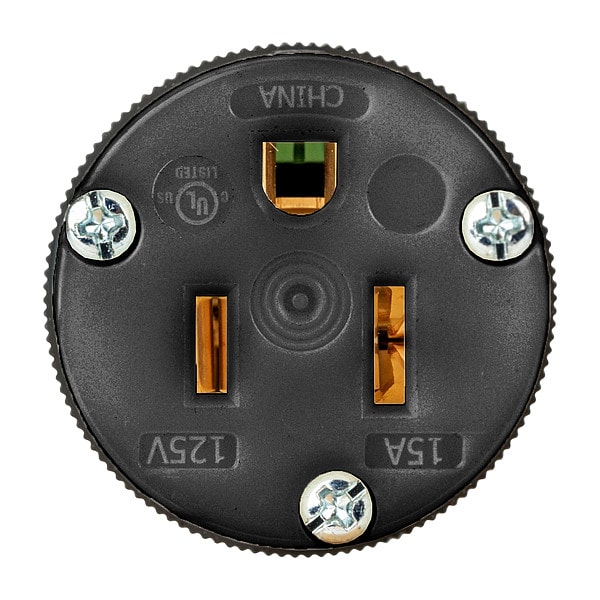

Straight Blade Connector, Black, 15 A
| NEMA Receptacle Configuration | 5-15R |
|---|---|
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Minimum Wire Size | 14 AWG |
| Grade | General Use |
| Maximum Operating Temperature | 167 deg F |
| Minimum Operating Temperature | -40 Degrees F |
| Item | Straight Blade Connector |
| Standards | CSA C22.2, Fed. Spec. W-C596G |
| IP Rating | IP20 |
| For Environment | Industrial |
| Phase | Single |
| Contact Material | Copper |
| Maximum Wire Size | 10 AWG |
| Current Rating | 15 A |
| Housing Material | Nylon |
| Market | Industrial, Commercial |
| Voltage Rating | 125 V AC |
| Overall Length | 3.28 in |
| Connection Orientation | Straight |
| UL 94 Flammability Rating | V-2 |
| Grounding | Grounded |
| For Location | Indoor |
| For Minimum Cable Diameter | 0.23 in |
| Horsepower Rating | 0.5 HP |
| For Maximum Cable Diameter | 0.72 in |
| Housing Color | Black |
| Wire Connection Type | Wire Leads |
| Resistance Properties | Non-Conductive Housing |
| Hazardous Location Specification | Not Applicable |
| Shrouded | Yes |
| Polarized | Yes |
| Cap Type | No Cap or Cover |
| Power Indicating Light | No |
| Package Quantity | 1 |
