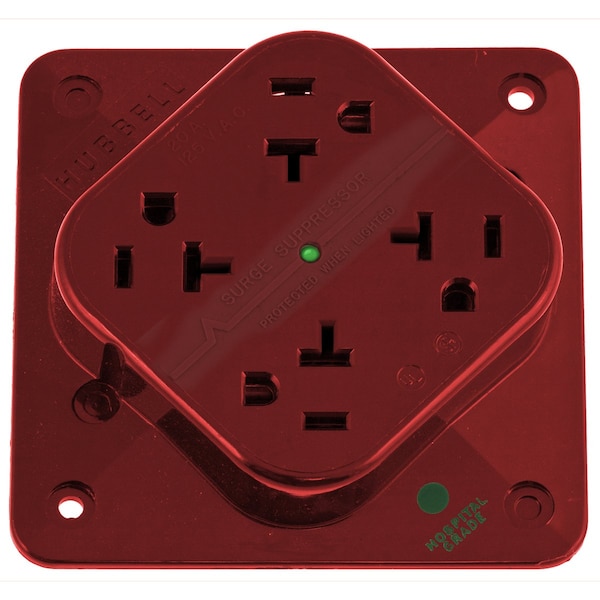

Straight Blade Devices, 4-Plex Receptacle, Commercial Grade, Surge Protected, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Red
| Type | 4-Plex |
|---|---|
| Material | Polycarbonate |
| Color | Red |
| Phase | Single Phase |
| Number Of Poles | 2-Pole |
| Amperage | 20 A |
| Mounting Hardware Material | Screw Mounting |
| Brand | Hubbell Wiring Device-Kellems |
| Environmental Rating | Indoor Dry Unless Protected By Additional Means |
| Wattage | 2500 |
| Current Rating | 20 A |
| Connectivity | Terminals |
| Carton Quantity | 5 |
| Voltage Rating | 125 V |
| Wire Size | #14 AWG to #12 AWG |
| Nema Rating | 5-20R |
| Series | Hospital Grade |
| Item | 4-PLEX |
| Number Of Wires | 3-Wire Grounding |
| Application | 4-Plex Hospital Grade |
| Display Size | Standard Sized Product |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Voltage Rating Description | 125 V |
| Amperage Rating | 20 A |
| Current / Amperage Rating | 20 A |
| Material - Mounting Hardware | Screw Mounting |
| Item Type | 4-PLEX |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Industry Standard(s) | Certified to CSA 22.2, No. 42 File 285 Listed to UL Standard 498 File E2186 |
| Performance | Electrical - Frequency - 60Hz Electrical - Protection Modes - Normal and Common Modes Electrical - Response Time - Approximately 5 ns Electrical - Transient Suppression - Peak Energy (10 X 100µs), Peak Current (8 X 20µs) Electrical - Voltage - 20V AC + 10% - 15% Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - -40°F to 140°F (-40°C to 60°C) |
| Package Quantity | 1 |
