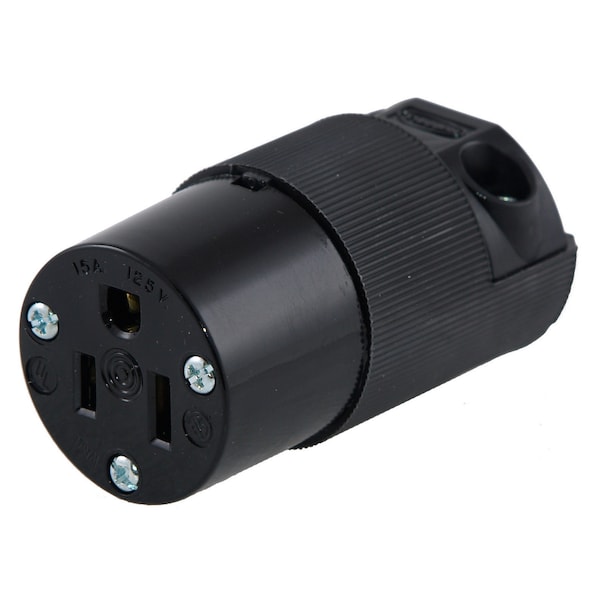

Straight Blade Devices, Female Connector Body, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 15A 125V, 5-15R, Extra Large
| Voltage | 125 V |
|---|---|
| Number of Poles | 2 |
| Number of Wires | 3 |
| Item | Insulgrip Straight Blade Connectors |
| Application | Commercial, Industrial Grade |
| Material | Polycarbonate |
| Amps | 15 |
| Phase | Single Phase |
| Special Features | IP20 Moisture Resistance |
| Standards | UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280; UL 94 HB or better Flammability; NEMA |
| Cord Size | 0.23 to 0.72 in |
| Color | Black |
| Weight | 0.15 lb |
| Maximum Operating Temperature | 75 deg C |
| Grounding Style | Grounding |
| Minimum Operating Temperature | -40°C |
| Blade Type | Straight Blade |
| Dielectric Strength | Withstands 2,000V minimum. |
| Minimum Wire Size | 18 AWG |
| Contact Material | Copper Alloy |
| Maximum Wire Size | 10 AWG |
| Voltage Rating Description | 125 V |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Conductor Range | #18 AWG to #10 AWG |
| Current / Amperage Rating | 15 A |
| Temperature Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Nema Rating | 5 to 15 R |
| Type | Connector Body |
| Series | Insulgrip |
| Connectivity | Screw Terminals |
| Industry Standard(s) | CSA Certified to C22.2 No. 42 File 280 NEMA® WD-6 Compliant UL Listed to UL498 File E1706 |
| Cord Range | 0.250"-0.655" |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Item Type | Insulgrip Plug |
| Amperage Rating | 15 A |
| Wire Size | #18 AWG to #10 AWG |
| Display Size | Standard |
| Current Rating | 15 A |
| Insulation | Insulated Body |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Material - Mounting Hardware | Cord Mounted |
| Style | Standard |
| Horsepower - Maximum | 0.5 |
| Package Quantity | 1 |
