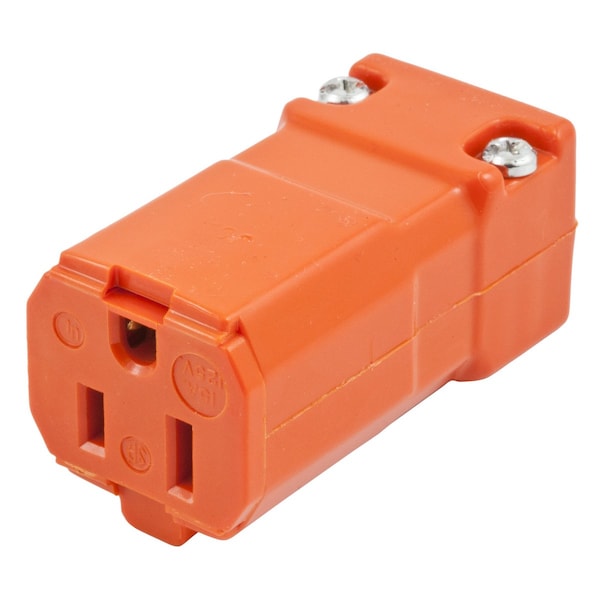

Straight Blade Devices, Female Connector Body, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A 125V, 5-15R
| Voltage | 125 V |
|---|---|
| NEMA Receptacle Configuration | 5-15R |
| HP | 0.5 |
| Phase | Single Phase |
| Current Rating | 15 A |
| Item | Valise |
| Amps | 15 |
| Material | Nylon |
| Application | Commercial, Industrial |
| Color | Orange |
| Standards | UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280; UL2305 Certified; UL 94 V2 Flammability; NEMA |
| Cord Size | 0.22 to 0.66 in |
| Special Features | IP20 Moisture Resistance |
| Number Of Wires | 3-Wire |
| Connectivity | Screw Terminals |
| Dielectric Strength | Withstands 2,000V minimum |
| Insulation | Insulated Body |
| Weight | 0.15 lb |
| Mounting Hardware Material | Cord Mounted |
| Maximum Horsepower | 0.5 |
| Environmental Rating | Indoor Dry Unless Protected By Additional Means |
| Display Size | Standard |
| Temp. Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Voltage Rating | 125 V |
| Wire Size | #18 AWG to #12 AWG |
| UPC | 783585000000 |
| Brand | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Cord Dia. Range | #18 AWG to #12 AWG |
| Carton Quantity | 50 |
| Number Of Poles | 2-Pole |
| Amperage | 15 A |
| Minimum Wire Size | 18 AWG |
| Maximum Operating Temperature | 75 deg C |
| Minimum Operating Temperature | -40°C |
| Blade Type | Straight Blade |
| Grounding Style | Grounding |
| Maximum Wire Size | 12 AWG |
| Temperature Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Nema Rating | 5 to 15 R |
| Cord Range | 0.230"-0.720" |
| Industry Standard(s) | CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Conductor Range | #18 AWG to #12 AWG |
| Item Type | Valise |
| Current / Amperage Rating | 15 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Horsepower - Maximum | 0.5 |
| Voltage Rating Description | 125 V |
| Material - Mounting Hardware | Cord Mounted |
| Amperage Rating | 15 A |
| Performance | Electrical:Current Interrupting: Certified for current interrupting at full rated current Dielectric Voltage: Withstands 2,000V minimum Mechanical: Product Identification: Ratings are a permanent part of the device Terminal Accommodation: #18-#12 AWG stranded copper wire only Terminal Identification: Terminals identified in accordance with UL 498 and CSA Environmental :Flammability: UL 94 HB or better IP Suitability: IP20 Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact) |
| Package Quantity | 1 |
