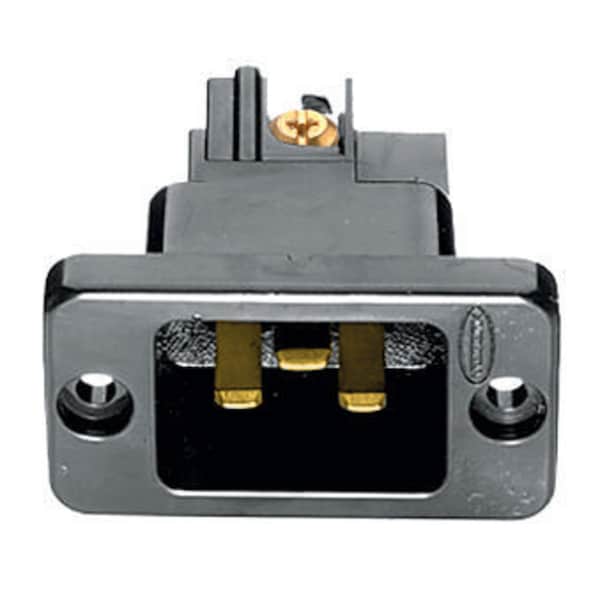

Straight Blade Devices, IEC 320 Devices, Inlet, 16A 250V, International Rated, Pressure Screw Terminal, Black, Single Pack
| Voltage | 250 V |
|---|---|
| Material | Nylon |
| Application | Heavy Duty Industrial |
| Width | 1.64 in |
| Height | 1.19 in |
| Wiring Method | Terminal Screw |
| Length | 1.47 in |
| Phase | Single Phase |
| Color | Black |
| Amperage | 20A/16A |
| Current / Amperage Rating | 1.25 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Power Contacts Material | Brass |
| Contact Blades Material | .040" (1.0) Brass |
| Material - Mounting Hardware | Screw Mounting |
| Wire Size | North American-#16AWG-#12AWG; International-1.55mm²-2.5mm². |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Current Interrupting | Certified for current interrupting at full rated current. |
| Base Material | Impact Modified PBT |
| Connectivity | Terminals |
| Terminal Screw Material | #6-32 Steel plated |
| Poles and Wires | 2-pole + earth. |
| Current Rating | 1.25 A |
| Retainer Material | Nylon-Black |
| Dimensions | 1.47 in x 1.64 in x 1.19 in |
| Item Type | Chassis Single |
| Wattage | 7500 W |
| Nema Rating | Non-NEMA |
| Device Color | Black |
| Display Size | Standard Sized Product |
| Insulation | Insulated Body |
| Amperage Rating | 1.25 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Voltage Rating Description | 250 V |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Number Of Poles | 2-Pole |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Product Type | Iec320-devices |
| Dielectric Voltage | Withstands 2,000V minimum |
| Rating | 16A 250V AC for European service; 20A 250V AC for North American service |
| IEC Product | Inlet |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Standard | IEC 320 |
| Certification | UL Listed 20A 250V AC-File No. E1706; CSA certified 20A 250V AC-File No. 17337; UL classified to IEC 320, 16A 250V AC-File No. E111246; TUV and VDE certified at 16A 250V AC-File No. 12469 1550 1002. |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Terminal Accommodation | North American-#16AWG-#12AWG |
| Ground Screw Material | #6-32 Steel plated Multi-drive |
| Flammability | UL 94V-2 |
| Number Of Wires | 3-Wire |
| Housing Material | Nylon-Black |
| Package Quantity | 1 |
