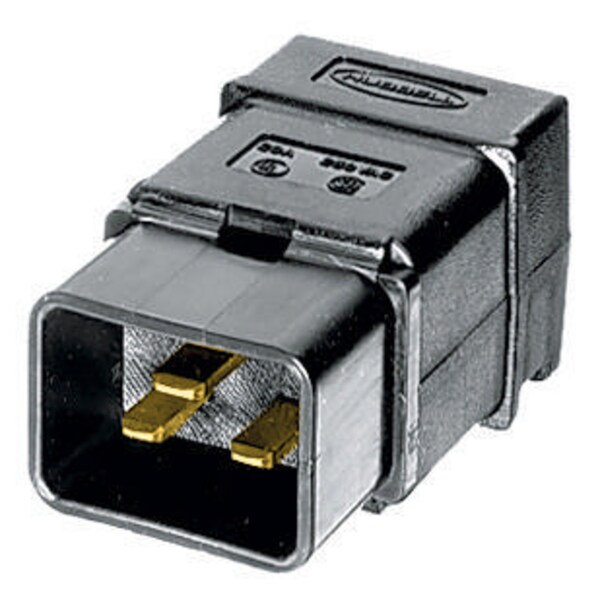

Straight Blade Devices, IEC 320 Devices, Male Plug, 16A 250V, International Rated, Pressure Screw Terminal, Black, Single Pack
| Item - Plugs and Receptacles | Iec320-devices |
|---|---|
| Wiring Style | stranded conductor |
| Amps - Plugs and Receptacles | 20A/16A |
| Voltage - Plugs and Receptacles | 125V AC |
| Color | Black |
| IP Rating | IP20 |
| Standards | IEC 320; UL Listed 20A 250V AC-File No. E1706; CSA certified 20A 250V AC-File No. 17337; UL classified to IEC 320, 16A 250V AC-File No. E111246; TUV and VDE certified at 16A 250V AC-File No. 12469 1550 1002.; Terminals identified in accordance with UL 498 and CSA |
| Special Features | Certified for current interrupting at full rated current. |
| Cord Size | .325"-.475" (8-12); .325" - .475" (8.0-12.0) |
| Height | 1.36 in |
| Width | 1.52 in |
| Length | 2-3/4 in |
| Nema Rating | Non-NEMA |
| Wire Size | North American-#16AWG-#12AWG; International-1.55mm²-2.5mm². |
| Contact Blades Material | .040" Brass |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Ground Screw Material | Steel |
| Number Of Poles | 2-Pole |
| Flammability | UL 94 HB or better |
| Operating Temp. | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Current Rating | 1.25 A |
| Wattage | 7500 W |
| Dielectric Strength | Withstands 2,000V minimum |
| Display Size | Standard Sized Product |
| Amperage | 1.25 A |
| Amperage Rating | 1.25 A |
| Number Of Wires | 3-Wire |
| Carton Quantity | 10 |
| Base Material | Nylon |
| Retainer Material | Nylon-Black |
| Voltage Rating Description | 250 V |
| Terminal Screw Material | Steel |
| Dimensions | 2-3/4 in x 1.52 in x 1.36 in |
| Housing Color | Black |
| Connectivity | Screw Terminals |
| Weight (Lbs.) | 0.15 |
| Housing Material | Nylon-Black |
| Brand | Hubbell Wiring Device-Kellems |
| IEC Product | Plug |
| Current / Amperage Rating | 1.25 A |
| Cord Clamp Material | Nylon-Black |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Voltage Rating | 250 V |
| Wiring Method | Terminal Screw |
| Power Contacts Material | .032" (.81) Brass |
| Package Quantity | 1 |
