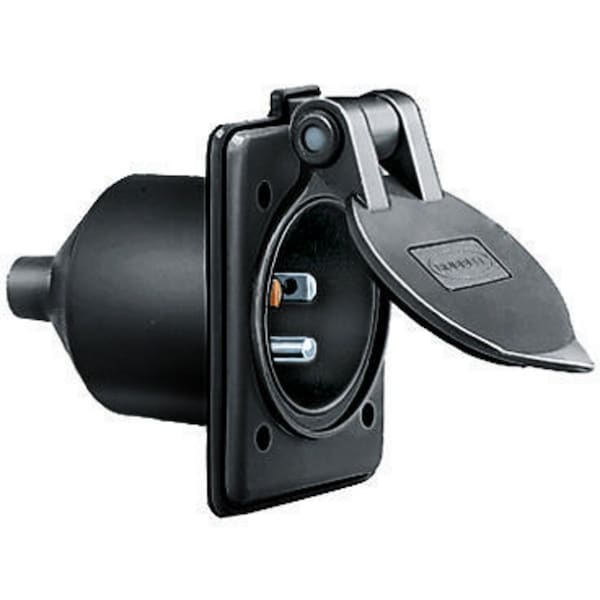

Straight Blade Devices, Male Inlets, Weatherproofed, Marine, 15A 125V, 2-Pole 3-Wire Grounding, 5-15P, Black, Single Pack
| Material | Thermoplastic |
|---|---|
| Phase | Single |
| Color | Black |
| Application | Marine Wiring Devices |
| Rating | 15A 125V, 2p3w |
| Poles and Wires | 2 Pole, 3 Wire Grounding |
| Product Type | Weatherproof Straight Blade Inlets |
| Blade Type | Straight Blade |
| Approvals | CSA, UL |
| Moisture Resistance | IP20 |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 NEMA® WD-6 Compliant UL Listed, File E2186 |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Horsepower - Maximum | 0.5 |
| Number Of Poles | 2-Pole |
| Dielectric Strength | Withstands 2,000V minimum |
| Wire Size | #14 AWG to #10 AWG |
| Material - Mounting Hardware | Screw Mounting |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Wattage | 1875 W |
| Display Size | Standard Sized Product |
| Voltage Rating Description | 125 V |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Amperage Rating | 15 A |
| Cord Range | 0.300"-0.660" (7.6-16.8) |
| Current Rating | 15 A |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Nema Rating | 5-15P |
| Connectivity | Screw Terminals |
| Number Of Wires | 3-Wire |
| Insulation | Insulated Body |
| Current / Amperage Rating | 15 A |
| Item Type | Standard Single |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
