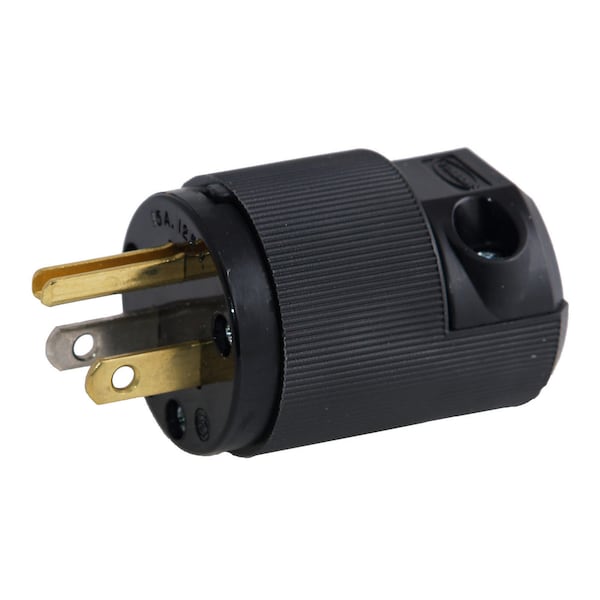

Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 15A 125V, 5-15P, Extra Large Cord
| Item - Plugs and Receptacles | Plug |
|---|---|
| Wiring Style | #18-10 AWG. Standed copper wire only |
| Grade - Plugs and Receptacles | Insulgrip |
| Amps - Plugs and Receptacles | 15A |
| Voltage - Plugs and Receptacles | 250 VAC |
| Number of Wires | 3 |
| Number of Poles | 2 |
| IP Rating | IP20 |
| Type | Plug |
| Special Features | Certified for current interrupting at full rated current |
| Phase | Single Phase |
| Standards | C-73; NEMA; UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280; Terminals identified in accordance with UL 498 and CSA |
| Cord Size | .230"-.720" (5.8-18.3); .360"-.720"(9.1-18. 3); .360"-.720"(9.1-18.3) |
| HP | 1/2 |
| NEMA Rating | WD-6; 5-15P |
| Material | Polycarbonate |
| Application | Industrial/Commercial Grade |
| Length | 1.52 in |
| Width | 1.52 in |
| Height | 1.96 in |
| Operating Temp. | -40°C to 60°C; Maximum continuous 75°C, minimum -40°C (w/o impact). |
| Flammability | Rated HB or better UL94 |
| Voltage Rating Description | 125 V |
| Housing Color | Black |
| Series | Insulgrip |
| Style | Standard |
| Wire Size | #18 AWG to #10 AWG |
| Body Style | Straight |
| Housing Material | Nylon-Black |
| Amperage Rating | 15 A |
| Horsepower - Maximum | 0.5 |
| Current Rating | 15A,125V |
| Contact Blades Material | .060" Brass |
| Blade Material | Solid Brass |
| Body Material | Impact Modified Nylon |
| Blade Holder Material | Nylon-Natural |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Cord Clamp Material | Nylon-Natural |
| Environment | Dry |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Dimensions | 1.52 in x 1.52 in x 1.96 in |
| Dielectric Strength | Withstands 2000V per UL498 |
| Retainer Material | Polycarbonate-Clear |
| Ground Contact Blade Material | .040" Copper Alloy |
| Weight (Lbs.) | 0.35 |
| Current / Amperage Rating | 15 A |
| Grounding | Grounded |
| Terminal Screw Material | #8-32 Brass /Ni plated for neutral |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Item Type | Insulgrip Plug |
| Package Quantity | 1 |
