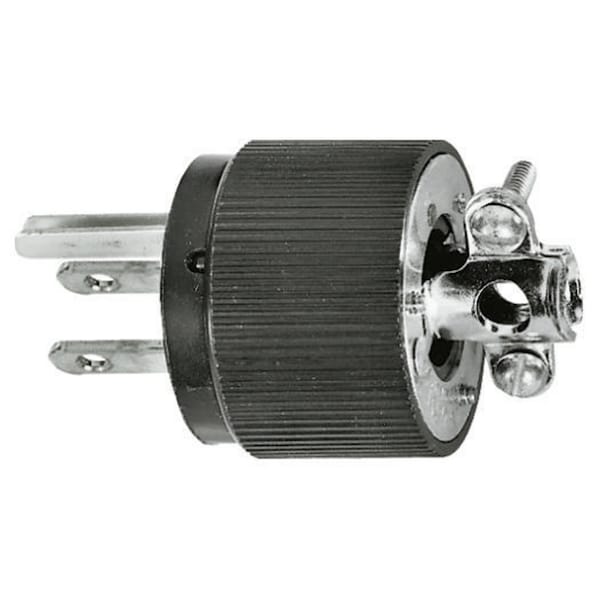

Dispositivos de lámina recta, clavija macho, resistente a la intemperie Insulgrip, grado industrial/comercial, recto, 2 polos 3 cables con conexión a tierra, 15A 125V, 5-15P, paquete individual.
| Item - Plugs and Receptacles | Plug |
|---|---|
| Item | Insulgrip Plug |
| Wiring Style | #14-#10 AWG copper stranded or solid conductor only. |
| Grade - Plugs and Receptacles | Fusible |
| Amps - Plugs and Receptacles | 15A |
| Voltage - Plugs and Receptacles | 250 VAC |
| Application | Industrial/Commercial Grade |
| Color | Black |
| Special Features | Certified for current interrupting at full rated current. |
| Material | Polycarbonate |
| Cord Size | .296"-.625" (7.5-15.9) |
| Standards | C-73; NEMA; CSA Only; Terminals identified in accordance with UL498 (Brass, White, Green). |
| HP | 1/2 |
| IP Rating | IP20 |
| Phase | Single Phase |
| Amperage | 15 A |
| Number Of Wires | 3-Wire |
| Dielectric Strength | Withstands 2,000V minimum |
| Voltage Rating | 125 V |
| UPC | 783585000000 |
| Carton Quantity | 10 |
| Nema Rating | 5 to 15 P |
| Standard | CSA Certified to C22.2 No. 42 File 280 |
| Weight | 0.2 lb |
| Brand | Hubbell Wiring Device-Kellems |
| Current Rating | 15 A |
| Wire Size | #18 AWG to #10 AWG |
| Maximum Horsepower | 0.5 |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Body Material | Impact Modified Nylon |
| Ground Screw Material | #6-36 Brass |
| Cord Clamp Material | Plated, Steel |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Housing Material | Rubber, Black |
| Body Style | Straight |
| Housing Color | Black |
| Operating Temp. | -40°C to 60°C; Maximum continuous 75°C, minimum -40°C (w/o impact). |
| Flammability | Rated HB or better UL94 |
| Grounding | Grounded |
| Environment | Dry |
| Blade Material | Solid Brass |
| Ground Contact Blade Material | .040" Copper Alloy |
| Contact Blades Material | .060" Brass |
| Weight (Lbs.) | 0.2 |
| Blade Holder Material | Black, Neoprene Rubber |
| Terminal Screw Material | #6-36 Brass /NI for neutral |
| Horsepower - Maximum | 0.5 |
| Current / Amperage Rating | 15 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Industry Standard(s) | CSA Certified to C22.2 No. 42 File 280 |
| Voltage Rating Description | 125 V |
| Item Type | Insulgrip Plug |
| Amperage Rating | 15 A |
| Package Quantity | 1 |
