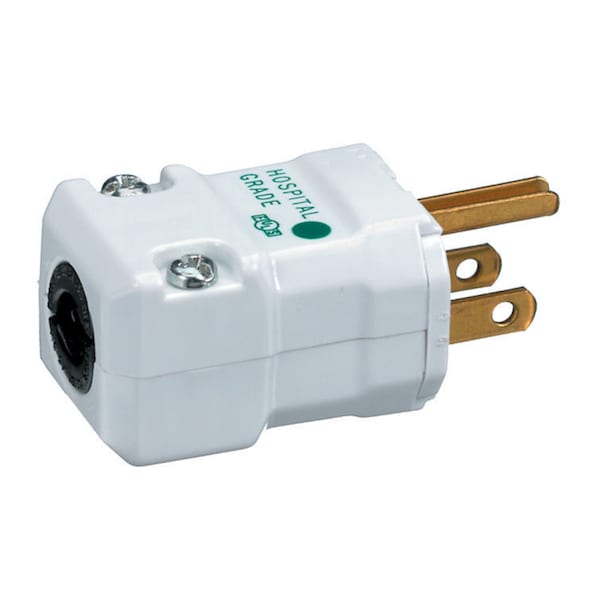

Dispositivos de hoja recta, clavija macho, serie Valise, grado hospitalario, recto, 2 polos 3 cables con tierra, 15A 125V, 5-15P, blanco, empaque individual.
| Item - Plugs and Receptacles | Plug |
|---|---|
| Item | Valise Plug |
| Wiring Style | #18 to #16 AWG |
| Amps - Plugs and Receptacles | 15A |
| Voltage - Plugs and Receptacles | 125V AC |
| Color | White |
| Cord Size | .300"-.360" (7.6-9.1) |
| Standards | Terminals identified in accordance with UL 498 and CSA |
| Material | Nylon |
| Type | Plug |
| IP Rating | IP20 |
| Special Features | Certified for current interrupting at full rated current |
| Wire Size | #18 AWG to #16 AWG |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Current Rating | 15 A |
| Nema Rating | 5 to 15 P |
| Brand | Hubbell Wiring Device-Kellems |
| Maximum Horsepower | 0.5 |
| Cord Dia. Range | 0.3 to 0.36 |
| Voltage Rating | 125 V |
| Series | Hospital Grade |
| Number Of Wires | 3-Wire |
| Dimensions | 1.6 in x 1.24 in x 1.17 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Number Of Poles | 2-Pole |
| Carton Quantity | 10 |
| Amperage | 15 A |
| Application | Hospital Grade |
| Length | 1.6 in |
| Height | 1.17 in |
| Width | 1.24 in |
| Body Style | Straight |
| Flammability | UL 94 HB or better |
| Connector Type | Valise |
| Weight (Lbs.) | 0.15 |
| Housing Color | White |
| Operating Temp. | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Horsepower - Maximum | 0.5 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Amperage Rating | 15 A |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Voltage Rating Description | 125 V |
| Item Type | Valise Plug |
| Cord Range | 0.300"-0.360" |
| Style | Valise Insulation Displacement |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2000V AC minimum Environmental - Flammability - UL 94 HB Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #18 to #16 AWG Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Current / Amperage Rating | 15 A |
| Package Quantity | 1 |
