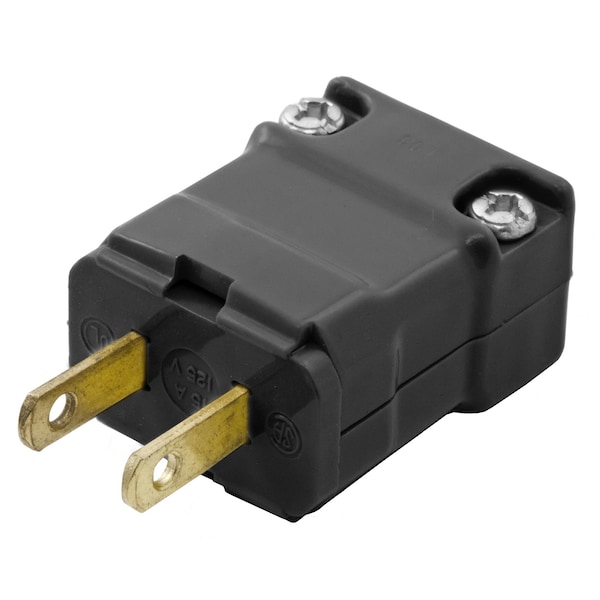

Dispositivos de hoja recta, macho, serie Valise, grado industrial/comercial, recto, 2 polos 2 cables sin conexión a tierra, 15A 125V, 1-15P, polarizado.
| Wiring Style | #18-#14 AWG stranded copper wire only |
|---|---|
| Color | Black |
| Phase | Single Phase |
| Standards | Terminals identified in accordance with UL 498 and CSA |
| IP Rating | IP20 |
| Type | Plug |
| Material | Nylon |
| Special Features | Certified for current interrupting at full rated current |
| Application | Heavy Duty Industrial |
| Housing Material | Nylon |
| Flammability | UL 94 HB |
| Terminal Screws | Brass |
| Operating Temp. | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Blades | Brass |
| Cable Inserts | PPO |
| Dielectric Strength | Withstands 2,000V minimum |
| Assembly Screws | Plated steel |
| Wire Size | #18 AWG to #14 AWG |
| Series | Valise |
| Material - Mounting Hardware | Cord Mounted |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Cord Type | All Portable |
| Current Rating | 15 A |
| Display Size | Standard Sized |
| Nema Rating | 5 to 15 P |
| Wattage | 1875 W |
| Connectivity | Screw Terminals |
| Industry Standard(s) | CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706 |
| Current / Amperage Rating | 15 A |
| Horsepower - Maximum | 0.5 |
| Amperage Rating | 15 A |
| Voltage Rating Description | 125 V |
| Number Of Wires | 2-Wire |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Molded Rating on Device Face Mechanical - Terminal Accommodation - #18-#14 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Style | Non-Grounding |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Number Of Poles | 2-Pole |
| Item Type | Male Plug |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Package Quantity | 1 |
