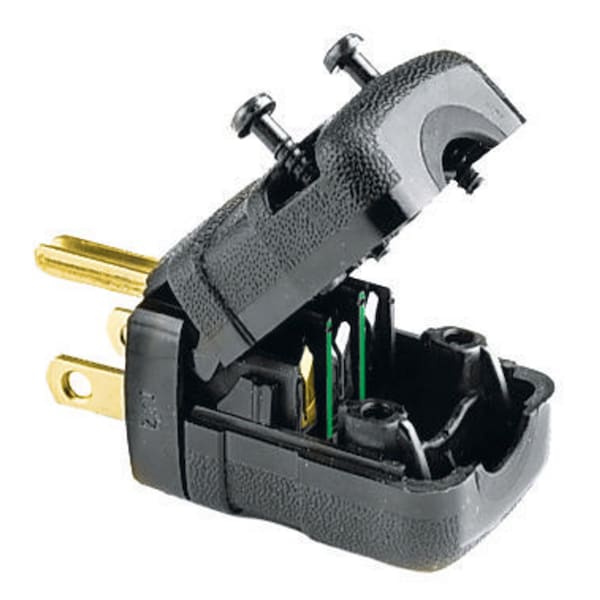

Straight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Black, Single Pack
| Item - Plugs and Receptacles | Plug |
|---|---|
| Wiring Style | #18-16 AWG. Stranded copper wire only. |
| Grade - Plugs and Receptacles | Valise |
| Amps - Plugs and Receptacles | 15A |
| Voltage - Plugs and Receptacles | 250 VAC |
| Number of Wires | 3 |
| Number of Poles | 2 |
| IP Rating | IP20 |
| HP | 1/2 |
| Phase | Single Phase |
| NEMA Rating | WD-6; 5-15P |
| Body Material | Impact Modified Nylon |
| Material | Polycarbonate |
| Type | Plug |
| Special Features | Certified for current interrupting at full rated current. |
| Standards | C-73; NEMA; UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280; Terminals identified in accordance with UL 498 and CSA |
| Cord Size | .230"-.360" (5.8-9.1); .230"-.360"(5.8-9.1 ) |
| Application | Industrial/Commercial Grade |
| Body Style | Straight |
| Grounding | Grounded |
| Style | Standard |
| Enhancement | Insulation Displacement |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Environment | Dry |
| Item Type | Valise |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Housing Color | Black |
| Weight (Lbs.) | 0.1 |
| Amperage Rating | 15 A |
| Housing Material | Nylon |
| Ground Contact Blade Material | Brass |
| Operating Temp. | -40°C to 60°C; Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Horsepower - Maximum | 2 |
| Connectivity | Screw Terminals |
| Blade Material | Solid Brass |
| Flammability | Rated HB or better UL94 |
| Current Rating | 15A,125V |
| Current / Amperage Rating | 15 A |
| Contact Blades Material | .060" Brass |
| Wire Size | #18 AWG to #16 AWG |
| Dielectric Strength | Withstands 2000V per UL498 |
| Series | Valise |
| Cord Clamp Material | Nylon |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Material - Mounting Hardware | Cord Mounted |
| Voltage Rating Description | 125 V |
| Package Quantity | 1 |
