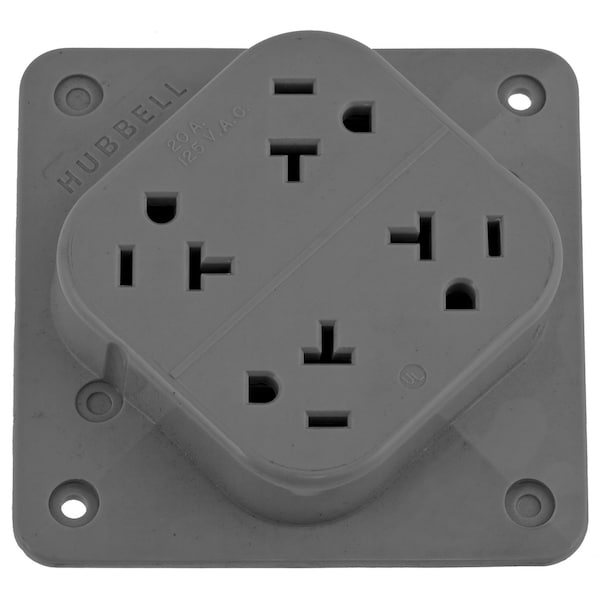

Straight Blade Devices, Receptacles, 4- Plex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5- 20R, Gray, Single Pack.
| Width | 0.92 in |
|---|---|
| Phase | Single Phase |
| Wiring Method | Back Wired |
| Color | Gray |
| Voltage | 125 V |
| Type | Grounding, 2 Pole, 3 Wire |
| Height | 4.3 in |
| Application | Industrial |
| Length | 4.3 in |
| Material | Polycarbonate |
| Receptacle Grade | Heavy Duty Spec Grade |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Certification | Listed to UL Standard 498 File E2186 Certified to CSA 22.2, No. 42 File 285 |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Rating | 15A, 125V |
| Standard | NEMA |
| Other Available Colors | Brown, Black, Gray, Ivory, White |
| Flammability | UL 94 V2. |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Terminal Screw Material | #8-32 Brass, Multiple Drive |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Receptacle Style | Quad |
| Base Material | Polycarbonate |
| Dielectric Voltage | Withstands 2,000V minimum |
| Terminal Accommodation | stranded, solid copper conductor only |
| Top Material | Polycarbonate |
| NEMA No. | 5 to 20 R |
| Power Contacts Material | .032" Brass |
| Horsepower | 1 |
| Device Color | Gray |
| Product Type | receptacles |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Amperage | 20 A |
| Current Interrupting | Capable of withstanding a fault level of 1000A, per UL498 |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Wire Size | #12 AWG |
| Material - Mounting Hardware | Screw Mounting |
| Amperage Rating | 20 A |
| Item Type | 4-PLEX |
| Number Of Poles | 2-Pole |
| Connectivity | Terminals |
| Series | 4-Outlet Receptacle |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Horsepower - Maximum | 1 |
| Performance | Electrical: Current Interrupting: Capable of withstanding a fault level of 1000A, per UL498 Dielectric Voltage: Withstands 2,000V minimum Mechanical: Product Identification: Ratings are a permanent part of the device Terminal Accommodation: #12 AWG stranded or solid copper conductor only Terminal Identification: Terminals identified in accordance with UL 498 and CSA Environmental: Flammability: UL 94 V-2 Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact) |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Number Of Wires | 3-Wire |
| Display Size | Standard Sized Product |
| Industry Standard(s) | Certified to CSA 22.2, No. 42 File 285 Listed to UL Standard 498 File E2186 NEMA® WD-6 Compliant |
| Nema Rating | 5-20R |
| Dimensions | 4.3 in x 0.92 in x 4.3 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Wattage | 2500 W |
| Voltage Rating Description | 125 V |
| Current / Amperage Rating | 20 A |
| Current Rating | 20 A |
| Package Quantity | 1 |
