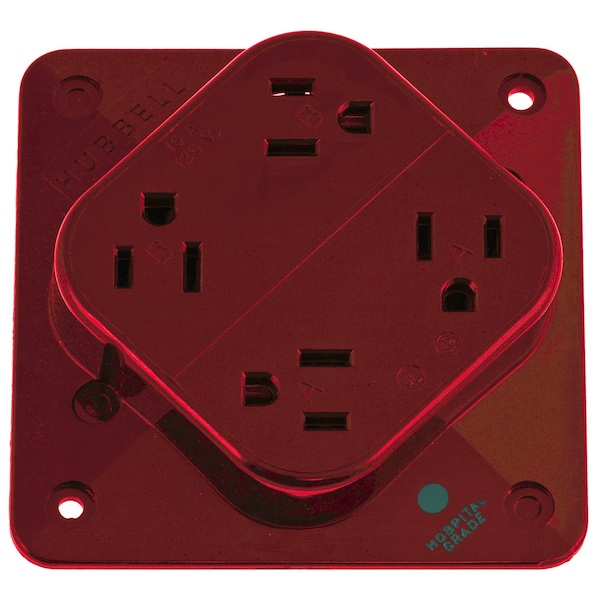

Straight Blade Devices, Receptacles, 4- Plex, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Red, Single Pack
| Type | 4-PLEX Receptacle |
|---|---|
| Width | 4.3 in |
| Color | Red |
| Voltage | 125 V |
| Height | 0.92 in |
| Phase | Single Phase |
| Number Of Poles | 2-Pole |
| Series | 4-PLEX Receptacle |
| Display Size | Standard Sized Product |
| Mounting Hardware Material | Screw Mounting |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Current Rating | 15 A |
| Carton Quantity | 5 |
| Wattage | 1875 W |
| Amperage | 15 A |
| Dimensions | 4.3 in x 4.3 in x 0.92 in |
| Number Of Wires | 3-Wire |
| Maximum Horsepower | 0.5 |
| Application | 4-Plex Hospital Grade |
| Material | Polycarbonate |
| Brand | Hubbell Wiring Device-Kellems |
| Item | 4-PLEX |
| Nema Rating | 5-15R |
| Connectivity | Terminals |
| Wire Size | #14 AWG to #12 AWG |
| Dielectric Strength | Withstands 2,000V minimum |
| Environmental Rating | Indoor Dry Unless Protected By Additional Means |
| Style | Smooth Face |
| Voltage Rating | 125 VAC |
| Length | 4.3 in |
| Flammability | UL 94V-2 |
| Current Interrupting | Capable of withstanding a fault level of 1000A, per UL498 |
| Product Type | 4-plex |
| Poles and Wires | 2 Pole, 3 Wire |
| 4-Plex Type | Standard |
| Terminal Accommodation | #14-#12 AWG copper stranded or solid conductor only |
| Dielectric Voltage | Withstands 2,000V minimum |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Device Color | Red |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Current / Amperage Rating | 15 A |
| Performance | Electrical - Current Interrupting - Capable of withstanding a fault level of 1000A, per UL498 Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#12 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 File 285 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Amperage Rating | 15 A |
| Voltage Rating Description | 125 V |
| Horsepower - Maximum | 0.5 |
| Item Type | 4-PLEX |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Package Quantity | 1 |
