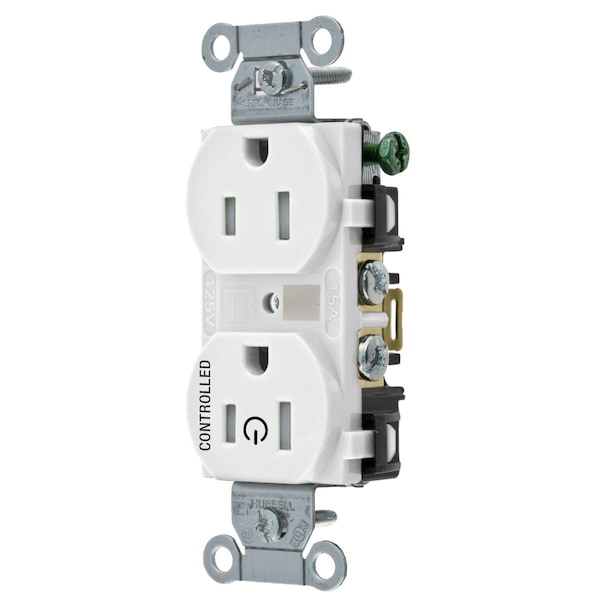

Dispositivos de cuchilla recta, receptáculos, dobles, controlados por carga al 50%, 15A, 125V, 2 polos, con conexión a tierra de 3 cables, con conexión trasera y lateral, color blanco.
| Type | Tamper Resistant |
|---|---|
| Color | White |
| Carton Quantity | 10 |
| Number Of Wires | 3-Wire |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Material | Nylon |
| Dielectric Strength | Withstands 2,000V minimum |
| Current Rating | 15 A |
| Connectivity | Back and Side Wired |
| Amperage | 15 A |
| Number Of Poles | 2-Pole |
| Style | Smooth Face |
| Application | Commercial Specification Grade |
| Standard | UL Listed to UL498 File No. E2186Certified to CSA, C22.2, No. 42Fed. Spec. W-C-596NEMA WD-6 Compliant |
| Item | Traditional Duplex |
| Series | Controlled |
| Display Size | Standard Sized Product |
| Voltage Rating | 125 V |
| Current / Amperage Rating | 15 A |
| Amperage Rating | 15 A |
| Item Type | Traditional Duplex |
| Industry Standard(s) | UL Listed to UL498 File No. E2186Certified to CSA, C22.2, No. 42Fed. Spec. W-C-596NEMA® WD-6 Compliant |
| Performance | Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification- Ratings are a permanent part of the device Mechanical: Terminal Accommodation- #14-10 AWG stranded or solid copper wire only. Mechanical: Terminal Identification- Terminals identified in accordance with UL 498 and CSA Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact) |
| Package Quantity | 1 |
