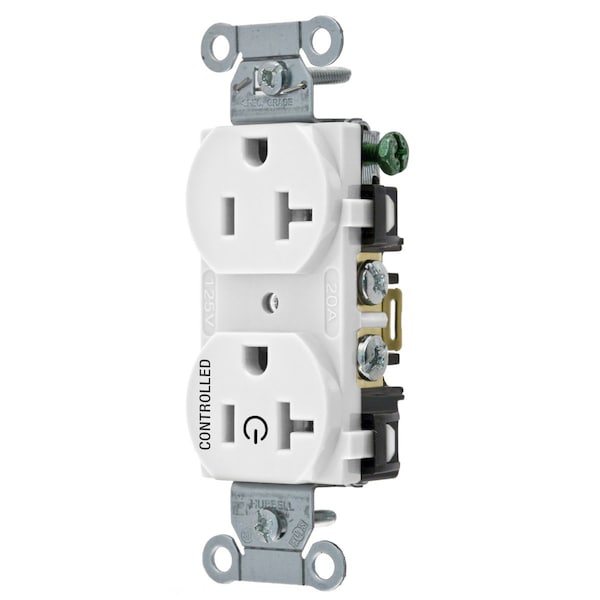

Straight Blade Devices, Receptacles, Duplex, 1/2 Load Controlled, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Back and Side Wired, White
| Height | 3.28 in |
|---|---|
| Color | White |
| Material | Nylon |
| Width | 0.83 in |
| Type | Split Circuit, One Controlled Face |
| Application | Commercial Specification Grade Duplex |
| Length | 1.32 in |
| Item Type | Traditional Duplex |
| Amperage Rating | 20 A |
| Voltage Rating | 125 V |
| Dimensions | 1.32 in x 0.83 in x 3.28 in |
| Series | Controlled |
| Display Size | Standard Sized Product |
| Voltage Rating Description | 125 V |
| Style | Smooth Face |
| Connectivity | Back and Side Wired |
| Current / Amperage Rating | 20 A |
| Number Of Wires | 3-Wire |
| Horsepower - Maximum | 1 |
| Number Of Poles | 2-Pole |
| Current Rating | 20 A |
| Nema Rating | 5-20R |
| Material - Mounting Hardware | Screw Mounting |
| Wire Size | #14 AWG to #10 AWG |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Dielectric Strength | Withstands 2,000V minimum |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Industry Standard(s) | CSA Certified 22.2, No. 42 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Package Quantity | 1 |
