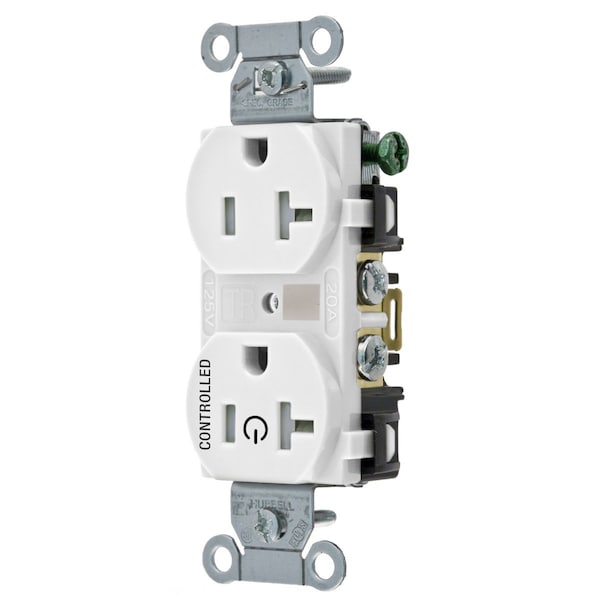

Straight Blade Devices, Receptacles, Duplex, 1/2 Load Controlled, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Back and Side Wired, White
| Color | White |
|---|---|
| Type | Tamper Resistant |
| Material | Nylon |
| Application | Commercial Specification Grade Duplex |
| Current Rating | 20 A |
| Industry Standard(s) | UL Listed to UL498 File No. E2186Certified to CSA, C22.2, No. 42Fed. Spec. W-C-596NEMA® WD-6 Compliant |
| Voltage Rating Description | 125 V |
| Dielectric Strength | Withstands 2,000V minimum |
| Item Type | Traditional Duplex |
| Style | Smooth Face |
| Current / Amperage Rating | 20 A |
| Material - Mounting Hardware | Screw Mounting |
| Amperage Rating | 20 A |
| Number Of Poles | 2-Pole |
| Nema Rating | 5-20R |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Connectivity | Back and Side Wired |
| Series | Controlled |
| Number Of Wires | 3-Wire |
| Voltage Rating | 125 V |
| Display Size | Standard Sized Product |
| Package Quantity | 1 |
