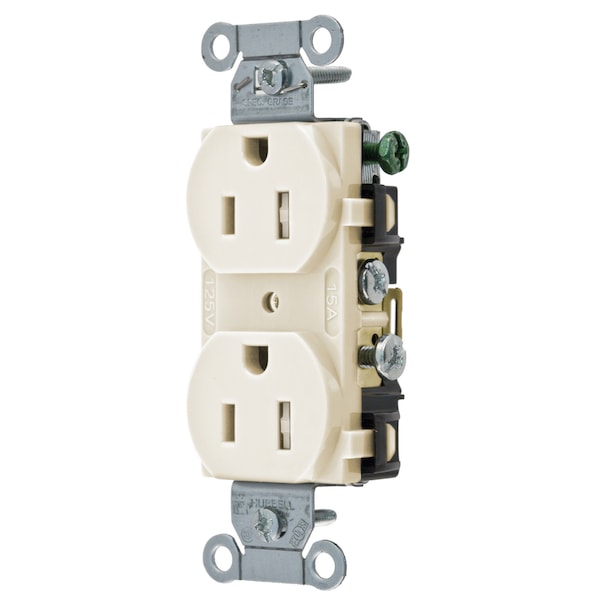

Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Light Almond, Single Pack
| Length | 1.32 in |
|---|---|
| Series | Commercial Specification Grade |
| Color | Lightalmond |
| Application | Commercial Specification Grade |
| Material | Nylon |
| Wiring Method | Side Wire Only |
| Voltage | 125 V |
| Phase | Single Phase |
| Height | 3.28 in |
| Type | Grounding, 2 Pole, 3 Wire |
| Width | 0.83 in |
| Terminal Screw Material | #8-32 Brass, Multiple Drive |
| Power Contacts Material | .031" Phosphor Bronze |
| Mounting Strap Material | Steel |
| Dielectric Voltage | Withstands 2,000V minimum |
| Receptacle Grade | Commercial Series Specification Grade, Tamper Resistant |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Face Style | Smooth Face |
| Standard | NEMA |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Auto Ground Clip Material | .032" Steel Wire |
| Horsepower | 0.5 |
| Amperage | 15 A |
| Flammability | UL 94 V2. |
| Face Shape | Traditional |
| Certification | UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42 |
| Rating | 15A, 125V |
| Receptacle Style | Duplex |
| Product Type | Flush-receptacles |
| NEMA No. | 5 to 15 R |
| Top Material | Nylon |
| Mounting Screw Material | Steel-Zinc Plated |
| Current Interrupting | Certified for current interrupting at full rated current |
| Other Available Colors | Brown, Almond, Black, Gray, Ivory, Office White, White, Light Almond |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Device Color | Light Almond |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Base Material | Nylon |
| Dielectric Strength | Withstands 2,000V minimum |
| Voltage Rating Description | 125 V |
| Material - Mounting Hardware | Screw Mounting |
| Number Of Wires | 3-Wire |
| Amperage Rating | 15 A |
| Display Size | Standard Sized Product |
| Wire Size | #14 AWG to #10 AWG |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Current / Amperage Rating | 15 A |
| Wattage | 1875 W |
| Horsepower - Maximum | 0.5 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Number Of Poles | 2-Pole |
| Connectivity | Side Wired |
| Item Type | Traditional Duplex |
| Current Rating | 15 A |
| Nema Rating | 5-15R |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Dimensions | 1.32 in x 0.83 in x 3.28 in |
| Style | Smooth Face |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Package Quantity | 1 |
