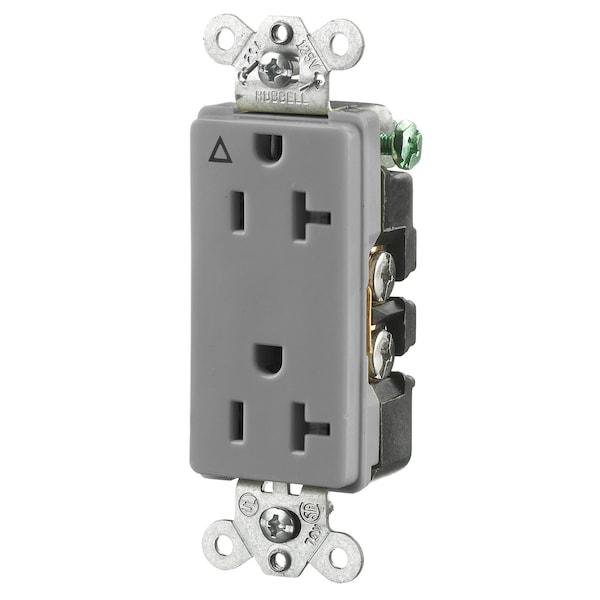

Straight Blade Devices, Receptacles, Duplex, Commercial/Decorator Grade, Isolated Ground, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Gray, Single Pack
| Phase | Single Phase |
|---|---|
| Wiring Method | Back, Side |
| Material | Nylon |
| Voltage | 125 V |
| Height | 1.03 in |
| Width | 1.36 in |
| Color | Gray |
| Type | Grounding, 2 Pole, 3 Wire |
| Length | 3.28 in |
| Application | Heavy Duty Style Line Decorator Duplex |
| Standard | NEMA |
| Terminal Accommodation | #12-#10 AWG copper stranded or solid conductor only |
| Other Available Colors | Orange, Gray |
| Flammability | Top: UL 94V-2, Base: UL 94V-0, Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA. |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Horsepower | 1 |
| Mounting Strap Material | .050" Steel Galvanized |
| NEMA No. | 5 to 20 R |
| Dielectric Voltage | Withstands 2,000V minimum |
| Enhancement | Isolated Ground |
| Current Interrupting | Certified for current interrupting at full rated current |
| Face Shape | Rectangular |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Power Contacts Material | .037" Brass, Ni Plated |
| Terminal Screw Material | #8-32 Brass /Ni plated for neutral |
| Certification | UL Listed, File E2186, Guide RTRT Fed Spec WC596G, Hospital Grade Meets NEMA WD-1 Heavy Duty and WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42 where applicable |
| Rating | 20A, 125V |
| Product Type | Flush-receptacles |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Mounting Screw Material | Steel-Zinc Plated |
| Base Material | Reinforced PET |
| Device Color | Gray |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Receptacle Grade | Style Line |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Receptacle Style | Duplex |
| Auto Ground Clip Material | Stainless Steel |
| Amperage | 20 A |
| Top Material | Nylon |
| Face Style | Smooth Face |
| Nema Rating | 5-20R |
| Number Of Wires | 3-Wire |
| Current Rating | 20 A |
| Horsepower - Maximum | 1 |
| Display Size | Standard Sized Product |
| Item Type | Style Line Decorator Duplex |
| Current / Amperage Rating | 20 A |
| Wattage | 2500 W |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Wire Size | #12 AWG to #10 AWG |
| Series | Heavy Duty |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Amperage Rating | 20 A |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Voltage Rating Description | 125 V |
| Style | Style Line Decorator |
| Industry Standard(s) | Certified to CSA 22.2, No. 42 File 285 Fed. Spec. WC596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Connectivity | Back and Side Wired Screw Terminals |
| Dimensions | 3.28 in x 1.36 in x 1.03 in |
| Material - Mounting Hardware | Screw Mounting |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Dielectric Strength | Withstands 2,000V minimum |
| Number Of Poles | 2-Pole |
| Package Quantity | 1 |
