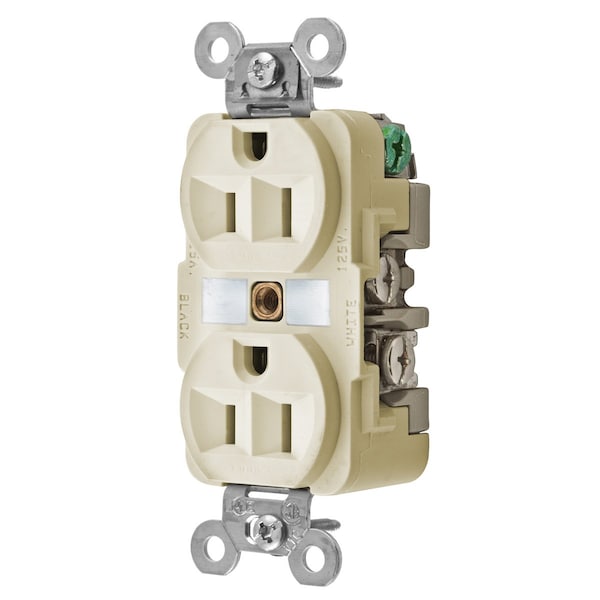

Straight Blade Devices, Receptacles, Duplex, Corrosion resistant, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack, Chem-Marine
| Receptacle Type | Corrosion Resistant |
|---|---|
| Width | 1.65 in |
| Phase | Single |
| Length | 3.28 in |
| Type | Receptacle |
| Color | Ivory |
| Height | 1.19 in |
| Application | Marine Wiring Devices |
| Amperage Rating | 15 A |
| Wattage | 1875 W |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only |
| Receptacle Style | Duplex |
| Flammability | Top: UL 94V-2, Base: UL 94V-0 |
| Item Type | Traditional Duplex |
| Dimensions | 3.28 in x 1.65 in x 1.19 in |
| Poles and Wires | 2 Pole, 3 Wire Grounding |
| Blade Type | Straight Blade |
| Rating | 15A 125V, 2p3w |
| Number Of Wires | 3-Wire |
| Horsepower - Maximum | 0.5 |
| Connectivity | Back and Side Wired |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Device Color | Ivory |
| Display Size | Standard Sized Product |
| Current Rating | 15 A |
| Wire Size | #14 AWG to #10 AWG |
| Product Type | Straight Blade Receptacles |
| Dielectric Voltage | Withstands 2,000V minimum |
| Voltage Rating Description | 125 V |
| Series | HBL Extra Heavy Duty |
| Current Interrupting | Certified for current interrupting at full rated current |
| Nema Rating | 5-15R |
| Current / Amperage Rating | 15 A |
| Environmental Conditions | Corrosion resistant |
| Material - Mounting Hardware | Screw Mounting |
| Dielectric Strength | Withstands 2,000V minimum |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Number Of Poles | 2-Pole |
| Approvals | CSA, UL |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
