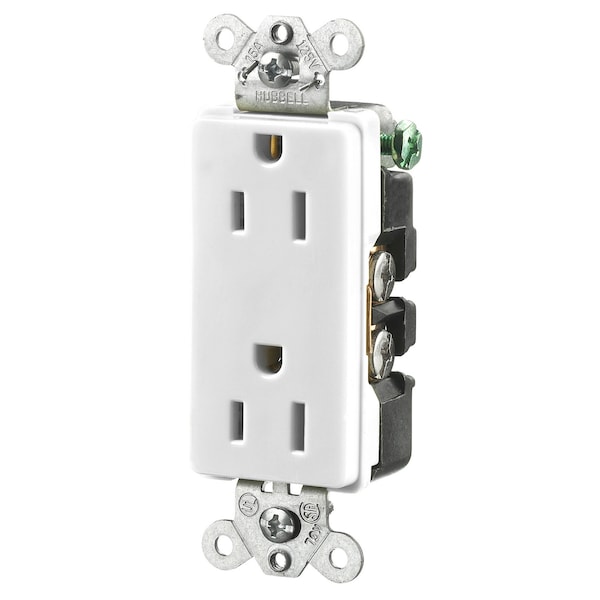

Straight Blade Devices, Receptacles, Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, White, Single Pack
| Wiring Method | Back, Side |
|---|---|
| Type | Grounding, 2 Pole, 3 Wire |
| Phase | Single Phase |
| Voltage | 125 V |
| Width | 1.36 in |
| Height | 1.03 in |
| Color | White |
| Length | 3.28 in |
| Application | Heavy Duty Style Line Decorator Duplex |
| Certification | UL Listed, File E2186, Guide RTRT, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42 where applicable |
| Face Shape | Rectangular |
| Receptacle Grade | Style Line |
| Power Contacts Material | .037" Phosphor Bronze |
| Amperage | 15 A |
| Other Available Colors | Brown, Almond, Black, Gray, Ivory, Office White, White |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Face Style | Smooth Face |
| Base Material | Reinforced PET |
| Auto Ground Clip Material | Stainless Steel |
| Horsepower | 0.5 |
| Receptacle Style | Duplex |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Mounting Strap Material | .050" Steel Galvanized |
| Current Interrupting | Certified for current interrupting at full rated current |
| Top Material | Nylon |
| Terminal Screw Material | #8-32 Brass /Ni plated for neutral |
| NEMA No. | 5 to 15 R |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Mounting Screw Material | Steel-Zinc Plated |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Device Color | White |
| Flammability | Top: UL 94V-2, Base: UL 94V-0, Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA. |
| Product Type | Flush-receptacles |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Rating | 15A, 125V |
| Standard | NEMA |
| Dielectric Voltage | Withstands 2,000V minimum |
| Industry Standard(s) | Certified to CSA 22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Wire Size | #14 AWG to #10 AWG |
| Series | Heavy Duty |
| Horsepower - Maximum | 0.5 |
| Number Of Wires | 3-Wire |
| Dimensions | 3.28 in x 1.36 in x 1.03 in |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Style | Style Line Decorator |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Nema Rating | 5-15R |
| Material - Mounting Hardware | Screw Mounting |
| Wattage | 1875 W |
| Connectivity | Back and Side Wired Screw Terminals |
| Number Of Poles | 2-Pole |
| Current Rating | 15 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Item Type | Style Line Decorator Duplex |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Amperage Rating | 15 A |
| Current / Amperage Rating | 15 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Voltage Rating Description | 125 V |
| Display Size | Standard Sized Product |
| Package Quantity | 1 |
