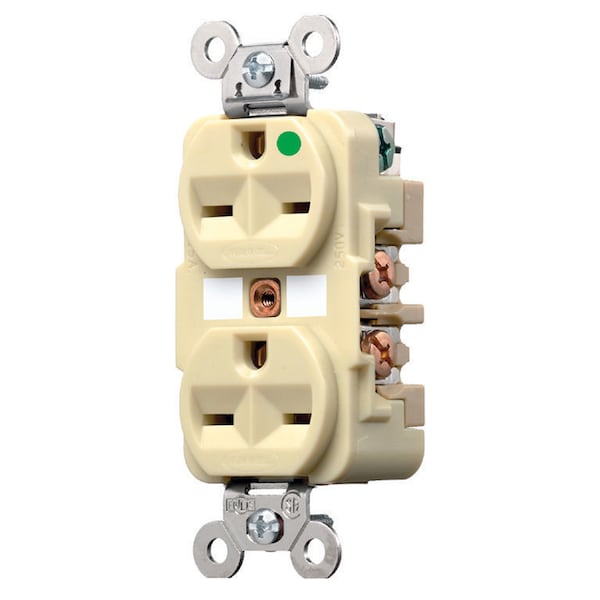

Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 250V, 6-15R, Ivory, Single Pack
| Voltage | 250 V |
|---|---|
| Type | Duplex Receptacle |
| Width | 1.65 in |
| Phase | Single Phase |
| Color | Ivory |
| Height | 1.19 in |
| Material | Thermoplastic |
| Application | Extra Heavy Duty Hospital Grade |
| Length | 3.28 in |
| Horsepower - Maximum | 1.5 |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only |
| Series | HBL Extra Heavy Duty Hospital Grade |
| Item Type | Traditional Duplex |
| Amperage Rating | 15 A |
| Device Grade | Heavy Duty Spec Grade |
| Wattage | 3750 W |
| Connectivity | Back and Side Wired Screw Terminals |
| Voltage Rating | 250 V |
| Current Rating | 15 A |
| Current / Amperage Rating | 15 A |
| Current Interrupting | Certified for current interrupting at full rated current |
| Conductor Range | #14 AWG to #10 AWG |
| Number Of Wires | 3-Wire |
| Receptacle Type | Standard |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Wire Size | #14 AWG to #10 AWG |
| Nema Rating | 6-15R |
| Dimensions | 3.28 in x 1.65 in x 1.19 in |
| Material - Mounting Hardware | Screw Mounting |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Flammability | UL 94 V-0 |
| Dielectric Voltage | Withstands 2,000V minimum |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Amperage | 15 A |
| Poles and Wires | 2 Pole, 3 Wire |
| Maximum Horsepower | 1.5 |
| Number Of Poles | 2-Pole |
| Brand | Hubbell Wiring Device-Kellems |
| Carton Quantity | 10 |
| Cord Dia. Range | #14 AWG to #10 AWG |
| Item | Traditional Duplex |
| Product Type | Duplex-receptacles |
| Display Size | Standard Sized Product |
| Dielectric Strength | Withstands 2,000V minimum |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Device Color | Ivory |
| Voltage Rating Description | 250 V |
| Style | Finder Groove Face |
| Package Quantity | 1 |
