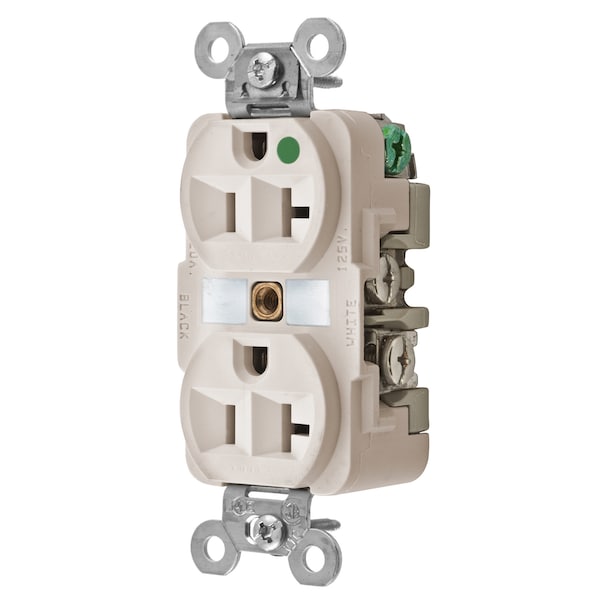

Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Light Almond, Single Pack
| Phase | Single Phase |
|---|---|
| Height | 1.19 in |
| Wiring Method | Back, Side |
| Width | 1.65 in |
| Type | Receptacle |
| Voltage | 125 V |
| Color | Light Almond |
| Carton Quantity | 10 |
| Number Of Poles | 2-Pole |
| Connectivity | Back and Side Wired Screw Terminals |
| Wire Size | #12 AWG to #10 AWG |
| Style | Finder Groove Face |
| Maximum Horsepower | 1 |
| Brand | Hubbell Wiring Device-Kellems |
| Number Of Wires | 3-Wire |
| Nema Rating | 5-20R |
| Amperage | 20 A |
| Item | Traditional Duplex |
| Series | Hospital Grade |
| Voltage Rating | 125 V |
| Display Size | Standard Sized Product |
| Dimensions | 3.28 in x 1.65 in x 1.19 in |
| Dielectric Strength | Withstands 2,000V minimum |
| Current Rating | 20 A |
| Length | 3.28 in |
| Application | Extra Heavy Duty Hospital Grade |
| Material | Thermoplastic |
| Mounting Screw Material | Stainless Steel |
| Face Style | Finder Groove |
| Top Material | Impact Modified PBT |
| Horsepower | 1 |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Mounting Strap Material | .050" Brass |
| Dielectric Voltage | Withstands 2,000V minimum |
| Power Contacts Material | .037" Brass, Ni Plated |
| Flammability | UL 94 V0 and UL 94-5 VA., UL 94 V-0 |
| Rating | 20A, 125V |
| Base Material | Reinforced PET |
| Receptacle Grade | Hospital Grade |
| Certification | UL Listed, File E2186, Guide RTRT Fed Spec WC596G, Hospital Grade Meets NEMA WD-1 Heavy Duty and WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42 where applicable |
| Receptacle Style | Duplex |
| Product Type | Flush-receptacles |
| Terminal Accommodation | stranded, solid copper wire only |
| Face Shape | Traditional |
| Current Interrupting | Certified for current interrupting at full rated current |
| Other Available Colors | Brown, Ivory, Gray, Red, White, Blue, Light Almond |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| NEMA No. | 5 to 20 R |
| Standard | NEMA |
| Auto Ground Clip Material | Stainless Steel |
| Terminal Screw Material | #10-32 Silicon Bronze |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Device Color | Light Almond |
| Ground Screw Material | #10-32 Silicon Bronze |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Voltage Rating Description | 125 V |
| Current / Amperage Rating | 20 A |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Item Type | Traditional Duplex |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Wattage | 2500 W |
| Horsepower - Maximum | 1 |
| Amperage Rating | 20 A |
| Material - Mounting Hardware | Screw Mounting |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Industry Standard(s) | CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Package Quantity | 1 |
