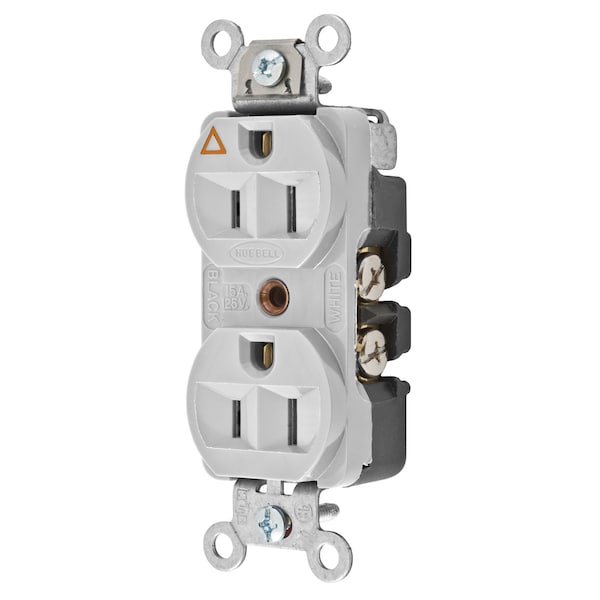

Straight Blade Devices, Receptacles, Duplex, Hubbell-Pro Heavy Duty, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Office White, Isolated Ground.
| Type | Grounding, 2 Pole, 3 Wire |
|---|---|
| Height | 1.05 in |
| Wiring Method | Back, Side |
| Color | Officewhite |
| Width | 1.33 in |
| Phase | Single Phase |
| Voltage | 125 V |
| Length | 3.28 in |
| Material | Nylon |
| Application | Hubbell-Pro Heavy Duty Specification Grade |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only |
| Base Material | Reinforced PET |
| Other Available Colors | Orange, Black, Gray, Ivory, White, Office White |
| Receptacle Style | Duplex |
| Product Type | Flush-receptacles |
| Mounting Strap Material | .050" Brass |
| Power Contacts Material | .037" Phosphor Bronze |
| Rating | 15A, 125V |
| Terminal Screw Material | #8-32 Brass /Ni plated for neutral |
| Standard | NEMA |
| Horsepower | 0.5 |
| Face Shape | Traditional |
| Top Material | Nylon |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Mounting Screw Material | Steel-Zinc Plated |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Dielectric Voltage | Withstands 2,000V minimum |
| Certification | -UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285. |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Enhancement | Isolated Ground |
| Auto Ground Clip Material | Stainless Steel |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| NEMA No. | 5 to 15 R |
| Flammability | UL 94 V2. |
| Amperage | 15 A |
| Receptacle Grade | Construction Series Specification Grade |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Device Color | White |
| Face Style | Finder Groove |
| Current Interrupting | Certified for current interrupting at full rated current |
| Number Of Poles | 2-Pole |
| Item Type | Traditional Duplex |
| Connectivity | Back and Side Wired Screw Terminals |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Wire Size | #14 AWG to #10 AWG |
| Series | Hubbell-PRO |
| Current / Amperage Rating | 15 A |
| Wattage | 1875 W |
| Current Rating | 15 A |
| Display Size | Standard Sized Product |
| Material - Mounting Hardware | Screw Mounting |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Dimensions | 3.28 in x 1.33 in x 1.05 in |
| Number Of Wires | 3-Wire |
| Horsepower - Maximum | 0.5 |
| Voltage Rating Description | 125 V |
| Style | Finder Groove Face |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Amperage Rating | 15 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Nema Rating | 5-15R |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. WC596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Package Quantity | 1 |
