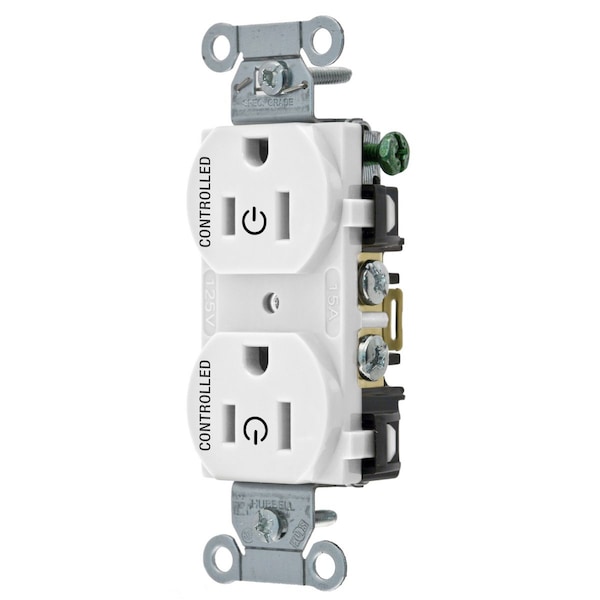

Straight Blade Devices, Receptacles, Duplex, Load Controlled, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Back and Side Wired, White
| Height | 3.28 in |
|---|---|
| Type | Two Controlled Faces |
| Width | 0.83 in |
| Color | White |
| Material | Nylon |
| Length | 1.32 in |
| Application | Commercial Specification Grade |
| Nema Rating | 5-15R |
| Dielectric Strength | Withstands 2,000V minimum |
| Current / Amperage Rating | 15 A |
| Item Type | Traditional Duplex |
| Voltage Rating Description | 125 V |
| Amperage Rating | 15 A |
| Series | Controlled |
| Display Size | Standard Sized Product |
| Horsepower - Maximum | 0.5 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Dimensions | 1.32 in x 0.83 in x 3.28 in |
| Current Rating | 15 A |
| Voltage Rating | 125 V |
| Wire Size | #14 AWG to #10 AWG |
| Style | Smooth Face |
| Number Of Wires | 3-Wire |
| Number Of Poles | 2-Pole |
| Connectivity | Back and Side Wired |
| Package Quantity | 1 |
