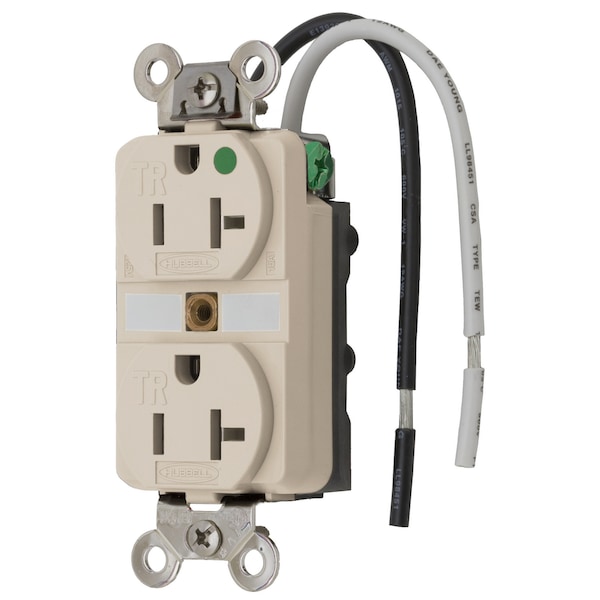

Dispositivos de hoja recta, receptáculos, dúplex, grado hospitalario de seguridad, 2 polos 3 cables de conexión a tierra, 20A 125V, 5-20R, almendra clara, paquete individual.
| Voltage | 125 V |
|---|---|
| Type | Receptacle |
| Width | 1.65 in |
| Phase | Single Phase |
| Color | Light Almond |
| Material | Thermoplastic |
| Height | 1.27 in |
| Style | Tamper Resistant |
| Dielectric Strength | Withstands 2,000V minimum |
| Nema Rating | 5-20R |
| Amperage | 20 A |
| Wire Size | #12 AWG to #10 AWG |
| Series | Hospital Grade |
| Maximum Horsepower | 1 |
| Item | Traditional Duplex |
| Display Size | Standard Sized Product |
| Dimensions | 3.29 in x 1.65 in x 1.27 in |
| Connectivity | Wire Leads |
| Carton Quantity | 10 |
| Current Rating | 20 A |
| Number Of Wires | 3-Wire |
| Brand | Hubbell Wiring Device-Kellems |
| Voltage Rating | 125 V |
| Number Of Poles | 2-Pole |
| Length | 3.29 in |
| Application | Extra Heavy Duty Hospital Grade |
| Current Interrupting | Certified for current interrupting at full rated current |
| IP Suitability | IP20 |
| Dielectric Voltage | Withstands 2,000V minimum |
| Poles and Wires | 2 Pole, 3 Wire |
| Receptacle Type | Safety Grade |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Flammability | UL 94V-0 and UL 94-5 VA |
| Product Type | Duplex-receptacles |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Device Grade | Heavy Duty Spec Grade |
| Device Color | Light Almond |
| Ground Terminal Accommodation | #12-#10 AWG stranded or solid copper wire only |
| Current / Amperage Rating | 20 A |
| Amperage Rating | 20 A |
| Wattage | 2500 W |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Material - Mounting Hardware | Screw Mounting |
| Horsepower - Maximum | 1 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-0 and UL 94-5 VA Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Ground Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Item Type | Traditional Duplex |
| Industry Standard(s) | CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Voltage Rating Description | 125 V |
| Package Quantity | 1 |
