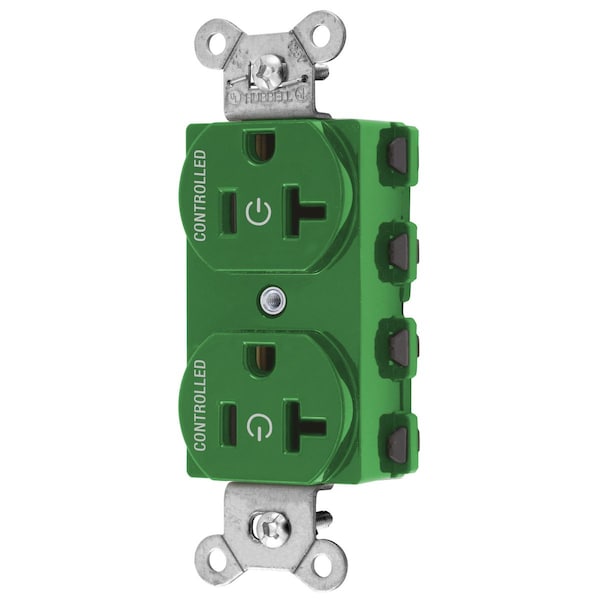

Straight Blade Devices, Receptacles, Duplex, SNAPConnect, Controlled, 20A 125V, 2-Pole 3-Wire Grounding, Nylon, Green
| Phase | Single Phase |
|---|---|
| Height | 1.1 in |
| Color | Green |
| Width | 1.64 in |
| Type | Two Controlled Faces |
| Environmental Rating | Indoor Dry Unless Protected By Additional Means |
| Carton Quantity | 10 |
| Connectivity | Connectorized |
| Current Rating | 20 A |
| Series | Permanently Marked Receptacles |
| Number Of Conductors | 3-Wire Grounding |
| Item | Smooth Face |
| Number Of Poles | 2-Pole |
| Wire Size | #12 AWG |
| Number Of Wires | 3-Wire |
| Voltage Rating | 125 V |
| Display Size | Standard Sized Product |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Nema Rating | 5-20R |
| Wattage | 2500 W |
| Dielectric Strength | Withstands 2,000V minimum |
| Dimensions | 3.28 in x 1.64 in x 1.1 in |
| Maximum Horsepower | 1 |
| Style | Smooth Face |
| Brand | Hubbell Wiring Device-Kellems |
| Material | Nylon |
| Length | 3.28 in |
| Application | SNAPConnect Permanently Marked |
| Industry Standard(s) | UL Listed |
| Current / Amperage Rating | 20 A |
| Amperage Rating | 20 A |
| Item Type | Standard Duplex |
| Voltage Rating Description | 125 V |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Performance | Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact) |
| Horsepower - Maximum | 1 |
| Package Quantity | 1 |
