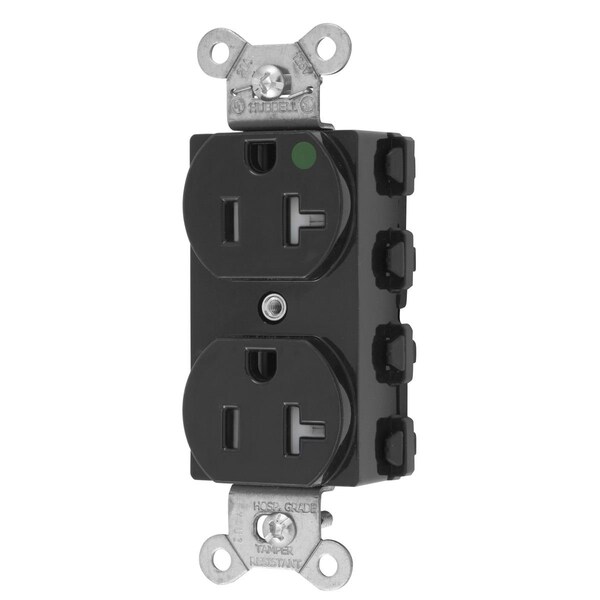

Dispositivos de hoja recta, receptáculos, dúplex, SNAPConnect, grado hospitalario, a prueba de manipulaciones, 20A 125V, 2 polos 3 cables de puesta a tierra, 5-20R, Nylon, fabricados en Estados Unidos.
| Amps - Plugs and Receptacles | 20 A |
|---|---|
| Voltage - Plugs and Receptacles | 125V AC |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Material | Nylon |
| Width | 1.64 in |
| Color | Black |
| Height | 1.1 in |
| Type | Tamper Resistant |
| Phase | Single Phase |
| Application | Hospital Grade |
| Wattage | 2500 W |
| Wire Size | #12 AWG |
| Style | Smooth Face |
| Dielectric Strength | Withstands 2,000V minimum |
| Current Rating | 20 A |
| Amperage Rating | 20 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Connectivity | Connectorized |
| Length | 3.28 in |
| Performance | Electrical: Current Interrupting- Certified for current interrupting at full rated current Electrical: Dielectric Voltage- Withstands 2,000V minimum Mechanical: Product Identification Ratings are a permanent part of the device Environmental: Flammability- UL 94V-2 Environmental: Operating Temperature- Maximum continuous 75°C minimum -40°C (w/o impact) |
| Series | Hospital Grade |
| Current / Amperage Rating | 20 A |
| Dimensions | 3.28 in x 1.64 in x 1.1 in |
| Horsepower - Maximum | 1 |
| Nema Rating | 5-20R |
| Voltage Rating Description | 125 V |
| Number Of Conductors | 3-Wire Grounding |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Display Size | Standard Sized Product |
| Industry Standard(s) | CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Item Type | Smooth Face |
| Package Quantity | 1 |
