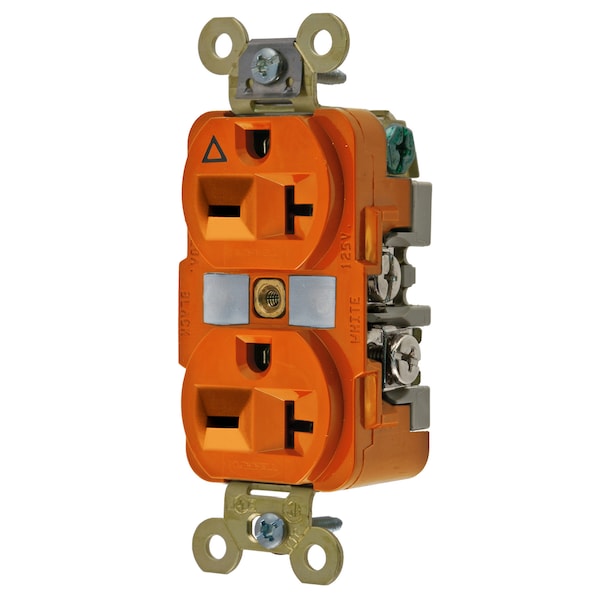

Straight Blade Devices, Receptacles, Duplex, Specification Grade, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, Orange, Single Pack
| Color | Orange |
|---|---|
| Height | 1.05 in |
| Type | Grounding, 2 Pole, 3 Wire |
| Voltage | 250 V |
| Wiring Method | Back, Side |
| Width | 1.33 in |
| Phase | Single Phase |
| Length | 3.28 in |
| Material | Nylon |
| Application | Extra Heavy Duty |
| Device Color | Orange |
| NEMA No. | 6 to 20 R |
| Certification | UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285. |
| Receptacle Style | Duplex |
| Enhancement | Isolated Ground |
| Product Type | Flush-receptacles |
| Face Style | Finder Groove |
| Flammability | Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA., UL 94 V-2 or better |
| Terminal Screw Material | #8-32 Brass /Ni plated for neutral |
| Ground Screw Material | #8-32 Brass, Multiple Drive |
| Mounting Screw Material | Steel-Zinc Plated |
| Face Shape | Traditional |
| Amperage | 20 A |
| Receptacle Grade | Heavy Duty Spec Grade |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Standard | NEMA |
| Rating | 20A, 250V |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Mounting Strap Material | .050" Brass |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Auto Ground Clip Material | Stainless Steel |
| Base Material | Reinforced PET |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Voltage | Withstands 2,000V minimum |
| Power Contacts Material | .037" Brass, Ni Plated |
| Top Material | Nylon |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Horsepower | 2 |
| Style | Finder Groove Face |
| Nema Rating | 6-20R |
| Number Of Poles | 2-Pole |
| Voltage Rating Description | 250 V |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Dimensions | 3.28 in x 1.33 in x 1.05 in |
| Number Of Wires | 3-Wire |
| Current Rating | 20 A |
| Display Size | Standard Sized Product |
| Industry Standard(s) | Certified to CSA 22.2, No. 42 File 285 Guide RTRT Fed Spec WC596G NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Connectivity | Back and Side Wired Screw Terminals |
| Amperage Rating | 20 A |
| Wire Size | #14 AWG to #10 AWG |
| Series | Extra Heavy Duty |
| Dielectric Strength | Withstands 2,000V minimum |
| Material - Mounting Hardware | Screw Mounting |
| Wattage | 5000 W |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Current / Amperage Rating | 20 A |
| Item Type | Traditional Duplex |
| Horsepower - Maximum | 2 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 or better Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Package Quantity | 1 |
