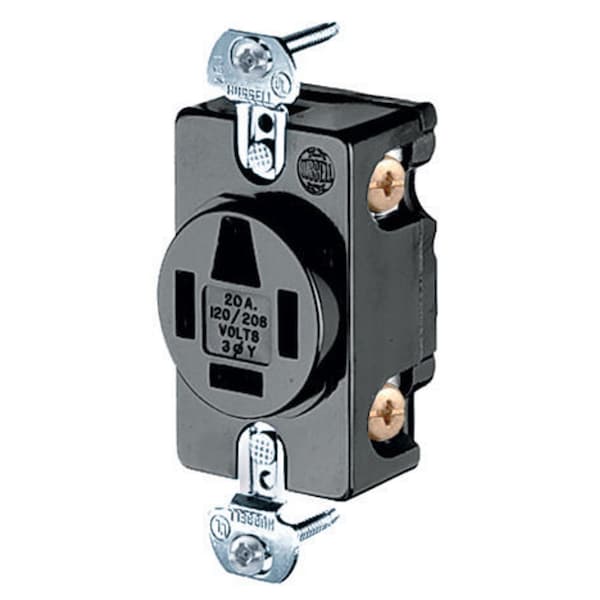

Straight Blade Devices, Receptacles, Flush Receptacle, Industrial Grade, 4-Pole 4-Wire Non-Grounding, 20A 3 Phase 120/208V AC, 18 -20R, Single Pack
| Phase | Three Phase |
|---|---|
| Color | Black |
| Series | Extra Heavy Duty |
| Type | 4 Wire, Non Grounding, 4 Pole |
| Wiring Method | Back, Side |
| Height | 1.19 in |
| Length | 2.38 in |
| Voltage | 3ph 120/208V AC |
| Application | Heavy Duty |
| Device Color | Black |
| Receptacle Style | Single |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Receptacle Grade | Heavy Duty Spec Grade |
| Base Material | Reinforced PET |
| Flammability | UL 94 V-2, UL 94 V0. |
| Dielectric Voltage | Withstands 2,000V minimum |
| Terminal Screw Material | #8-32 Brass /Ni plated for neutral |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only |
| Face Shape | Traditional |
| Amperage | 20 A |
| Product Type | Flush-receptacles |
| Certification | UL Listed, File E2186, Listed to UL Standard 498 |
| Box Terminals Material | Copper |
| NEMA No. | 18 to 20 R |
| Face Style | Finder Groove |
| Horsepower | 2 |
| Standard | NEMA |
| Poles and Wires | 4 Pole, 4 Wire Non-Grounding |
| Current Interrupting | Certified for current interrupting at full rated current |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Mounting Strap Material | Steel |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Rating | 20A, 3ph 120/208VACV |
| IP Suitability | IP20 |
| Mounting Screw Material | Steel-Zinc Plated |
| Power Contacts Material | Brass |
| Top Material | Nylon |
| Wire Size | #14 AWG to #10 AWG |
| Dielectric Strength | Withstands 2,000V minimum |
| Current / Amperage Rating | 20 A |
| Voltage Rating Description | 120 V, 208 V |
| Amperage Rating | 20 A |
| Number Of Wires | 4-Wire |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Connectivity | Back and Side Wired Screw Terminals |
| Material - Mounting Hardware | Screw Mounting |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Current Rating | 20 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Horsepower - Maximum | 2 |
| Wattage | 4160 W |
| Number Of Poles | 4-Pole |
| Item Type | Single |
| Display Size | Standard Sized Product |
| Industry Standard(s) | NEMA® WD-6 Compliant UL Listed to UL498 File E1706 |
| Nema Rating | 18-20R |
| Package Quantity | 1 |
