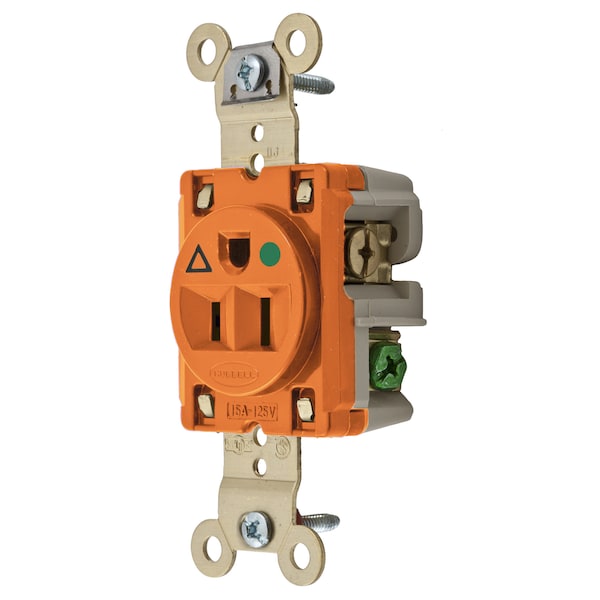

Straight Blade Devices, Receptacles, Single, Isolated Ground, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Orange, Single Pack
| Voltage | 125 V |
|---|---|
| Height | 1.19 in |
| Width | 1.62 in |
| Type | Single Receptacle |
| Phase | Single Phase |
| Color | Orange |
| Amperage | 15 A |
| Number Of Poles | 2-Pole |
| Voltage Rating | 125 V |
| Item | Single Receptacle |
| Style | Finder Groove Face |
| Connectivity | Back and Side Wired Screw Terminals |
| Application | Extra Heavy Duty Hospital Grade |
| Display Size | Standard Sized Product |
| Number Of Wires | 3-Wire |
| Nema Rating | 5-15R |
| Series | Extra Heavy Duty Hospital Grade |
| Current Rating | 15 A |
| Wire Size | #14 AWG to #10 AWG |
| Dielectric Strength | Withstands 2,000V minimum |
| Brand | Hubbell Wiring Device-Kellems |
| Carton Quantity | 10 |
| Dimensions | 3.28 in x 1.62 in x 1.19 in |
| Maximum Horsepower | 0.5 |
| Length | 3.28 in |
| Material | Nylon |
| Current Interrupting | Certified for current interrupting at full rated current |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Device Color | Orange |
| Poles and Wires | 2 Pole, 3 Wire |
| Dielectric Voltage | Withstands 2,000V minimum |
| Device Grade | Isolated Ground |
| Product Type | Single-receptacles |
| Flammability | UL 94V-2 |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Terminal Accommodation | #14-#10 AWG copper stranded or solid conductor only |
| Current / Amperage Rating | 15 A |
| Voltage Rating Description | 125 V |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Item Type | Single Receptacle |
| Material - Mounting Hardware | Screw Mounting |
| Amperage Rating | 15 A |
| Wattage | 1875 W |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Horsepower - Maximum | 0.5 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Package Quantity | 1 |
