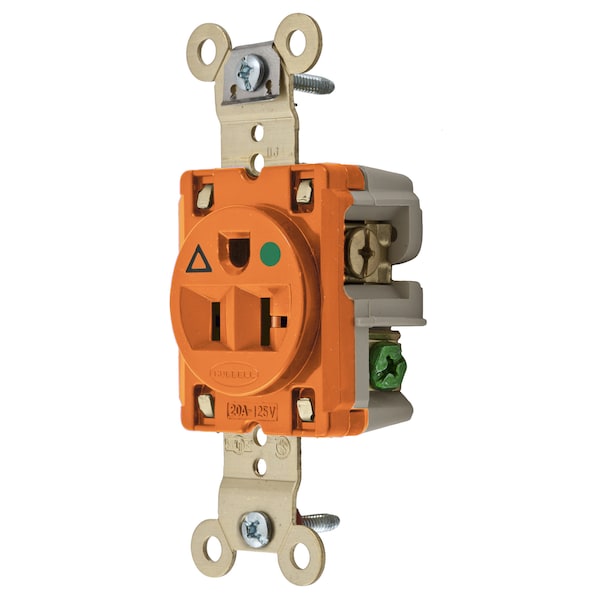

Straight Blade Devices, Receptacles, Single, Isolated Ground, Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Orange, Single Pack
| Type | Single Receptacle |
|---|---|
| Color | Orange |
| Phase | Single Phase |
| Width | 1.63 in |
| Height | 1.19 in |
| Voltage | 125 V |
| Application | Extra Heavy Duty Hospital Grade |
| Material | Nylon |
| Length | 3.28 in |
| Current / Amperage Rating | 20 A |
| Voltage Rating Description | 125 V |
| Current Rating | 20 A |
| Poles and Wires | 2 Pole, 3 Wire |
| Amperage | 20 A |
| Maximum Horsepower | 1 |
| Amperage Rating | 20 A |
| Number Of Poles | 2-Pole |
| Flammability | UL 94V-2 |
| Brand | Hubbell Wiring Device-Kellems |
| Wattage | 2500 W |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Terminal Accommodation | stranded, solid copper wire only |
| Dielectric Voltage | Withstands 2,000V minimum |
| Carton Quantity | 10 |
| Item | Single |
| Device Color | Orange |
| Dimensions | 3.28 in x 1.63 in x 1.19 in |
| Horsepower - Maximum | 1 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Current Interrupting | Certified for current interrupting at full rated current |
| Product Type | Single-receptacles |
| Display Size | Standard Sized Product |
| Style | Finder Groove Face |
| Series | Extra Heavy Duty Hospital Grade |
| Voltage Rating | 125 V |
| Material - Mounting Hardware | Screw Mounting |
| Number Of Wires | 3-Wire |
| Dielectric Strength | Withstands 2,000V minimum |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Connectivity | Back and Side Wired Screw Terminals |
| Wire Size | #12 AWG to #10 AWG |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Item Type | Single |
| Nema Rating | 5-20R |
| Package Quantity | 1 |
