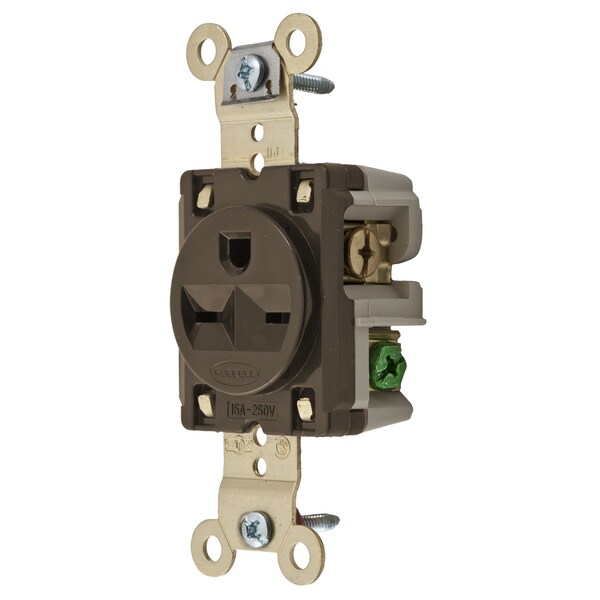

Dispositivos de hoja recta, receptáculos, sencillos, de grado de especificación, 2 polos 3 cables a tierra, 15A 250V, 6-15R, marrón, paquete individual con anillo. Terminal mod para una instalación segura y confiable.
| Item | Single |
|---|---|
| Amps - Plugs and Receptacles | 15 A |
| Color - Plugs and Receptacles | Brown, Ivory |
| Color | Brown |
| Standards | UL 498 File E2186, CSA, C22.2, No. 42 File 285, UL498 |
| Features | Heavy Duty Spec Grade |
| HP | 1.5 |
| Material | Nylon |
| Body Material - Pin and Sleeve | Reinforced PET, Nylon |
| Receptacle Type | Single Pin and Sleeve |
| Phase | Single Phase |
| Voltage | 250 V |
| Number Of Wires | 3-Wire |
| Display Size | Standard Sized Product |
| Wattage | 3750 W |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Maximum Horsepower | 1.5 |
| Voltage Rating | 250 V |
| Number Of Poles | 2-Pole |
| Weight | 0.15 lb |
| Environmental Rating | Indoor Dry Unless Protected By Additional Means |
| Dielectric Strength | Withstands 2,000V minimum |
| Carton Quantity | 10 |
| Mounting Hardware Material | Screw Mounting |
| Wire Size | #14 AWG to #10 AWG |
| Application | Extra Heavy Duty |
| Current Rating | 15 A |
| Amperage | 15 A |
| Nema Rating | 6-15R |
| Connectivity | Ring Terminal |
| UPC | 783585000000 |
| Brand | Hubbell Wiring Device-Kellems |
| Operating Temp. Range | -40° C to 75° C |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Item Type | Single |
| Material - Mounting Hardware | Screw Mounting |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Amperage Rating | 15 A |
| Industry Standard(s) | Certified to CSA 22.2, No. 42 File 285 Guide RTRT Fed Spec WC596G NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Horsepower - Maximum | 1.5 |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Current / Amperage Rating | 15 A |
| Voltage Rating Description | 250 V |
| Package Quantity | 1 |
