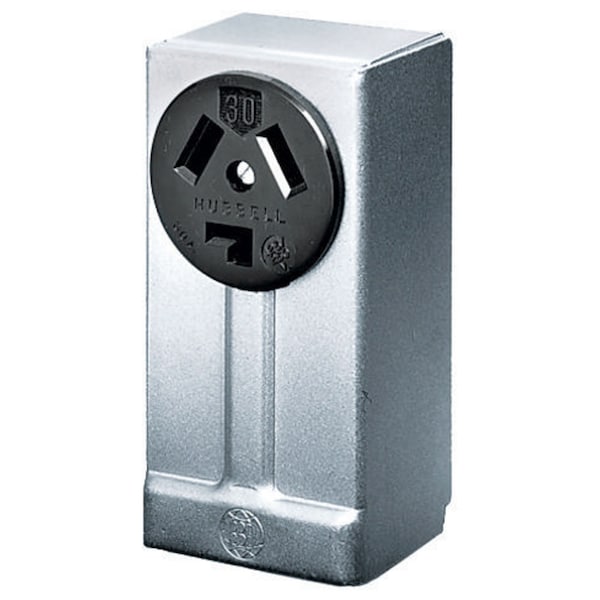

Straight Blade Devices, Receptacles, Surface Mounted, Aluminum Housing, Industrial Grade, 3-Pole 3-Wire Non-Grounding, 30A 125/250V, 10-30R.
| Material | Thermoplastic/Composite |
|---|---|
| Type | 3 Wire, 3 Pole, Non Grounding |
| Voltage | 125V/250V |
| Phase | Single Phase |
| Width | 2-1/2 in |
| Color | Black |
| Wiring Method | Back, Side |
| Height | 2.06 in |
| Application | Heavy Duty |
| Length | 5.06 in |
| Dielectric Voltage | Withstands 2,000V minimum |
| Horsepower | 2 |
| Current Interrupting | Certified for current interrupting at full rated current |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.. |
| Base Material | Phenolic |
| Rating | 30A, 125/250V |
| Face Shape | Traditional |
| Receptacle Grade | Heavy Duty Spec Grade |
| Poles and Wires | 3 Pole, 3-Wire Non-Grounding |
| NEMA No. | 10 to 30 R |
| Mounting Screw Material | Steel-Zinc Plated |
| Power Contacts Material | Brass |
| Certification | UL Listed, File E2186, Listed to UL Standard 498 |
| Standard | NEMA |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Enhancement | with Enclosure |
| Top Material | Phenolic |
| Product Type | Flush-receptacles |
| Receptacle Style | Single |
| IP Suitability | IP20 |
| Terminal Screw Material | 3/8" Allen Head, Plated Steel |
| Amperage | 30 A |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Device Color | Black |
| Terminal Accommodation | #12 AWG through #4 AWG copper wire only |
| Mounting Strap Material | Steel |
| Box Terminals Material | Brass |
| Face Style | Finder Groove |
| Flammability | UL 94 V0. |
| Number Of Poles | 3-Pole |
| Current Rating | 30 A |
| Current / Amperage Rating | 30 A |
| Amperage Rating | 30 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Wire Size | #12 AWG to #4 AWG |
| Number Of Wires | 3-Wire |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Wattage | 7500 W |
| Voltage Rating Description | 125/250 V |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V0 Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Display Size | Standard Sized Product |
| Industry Standard(s) | CSA Certified NEMA® WD-6 Compliant UL Listed File E2186 |
| Nema Rating | 10-30R |
| Dielectric Strength | Withstands 2,000V minimum |
| Material - Mounting Hardware | Screw Mounting |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Horsepower - Maximum | 2 |
| Dimensions | 5.06 in x 2-1/2 in x 2.06 in |
| Item Type | Single |
| Connectivity | Back and Side Wired Screw Terminals |
| Package Quantity | 1 |
