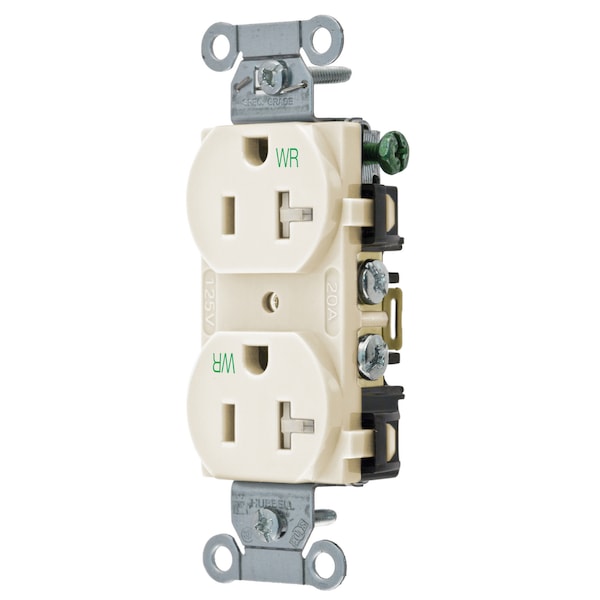

Dispositivos de cuchilla recta, receptáculos, duplex a prueba de manipulaciones y clima, grado comercial/industrial, con toma de tierra de 2 polos y 3 cables, 20A 125V, 5-20R. Ideal para entornos comerciales e industriales que requieren resistencia y durabilidad.
| Voltage | 125V |
|---|---|
| Material | Nylon |
| Phase | Single |
| Type | 2-Pole 3-Wire, Grounding |
| Color | Lightalmond |
| Application | Commercial Specification Grade |
| Certification | UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285. |
| Mounting Screw Material | Steel-Zinc Plated |
| Poles and Wires | 2 Pole, 3-Wire Grounding |
| Operating Temperatures | Maximum continuous 75°C, minimum -40°C |
| Flammability | UL 94 V2. |
| Dielectric Voltage | Withstands 2,000V minimum |
| Mounting Strap Material | .040" (1) Steel (Galvanized) |
| Device Color | Light Almond |
| Base Material | Nylon |
| Wiring Method | Back and Side Wired |
| Standard | NEMA |
| Receptacle Style | Duplex |
| Other Available Colors | Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black |
| Receptacle Grade | Specification Grade Commercial Series, Tamper and Weather Resistant |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current |
| Amperage | 20A |
| Terminal Accommodation | #12-#10 AWG copper stranded or solid conductor only |
| Power Contacts Material | .030" (.8) Brass |
| Terminal Identification | Terminals identified in accordance with UL 498 and CSA |
| Current Interrupting | Certified for current interrupting at full rated current |
| Top Material | Nylon |
| NEMA No. | 5 to 20 R |
| Face Shape | Traditional |
| Auto Ground Clip Material | Stainless Steel |
| Horsepower | 1 |
| Product Type | Flush-receptacles |
| Rating | 20A, 125V |
| Voltage Rating Description | 125 V |
| Current / Amperage Rating | 20 A |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Amperage Rating | 20 A |
| Nema Rating | 5-20R |
| Wattage | 2500 W |
| Style | Smooth Face |
| Display Size | Standard Sized Product |
| Dielectric Strength | Withstands 2,000V minimum |
| Number Of Wires | 3-Wire |
| Horsepower - Maximum | 1 |
| Number Of Poles | 2-Pole |
| Current Rating | 20 A |
| Item Type | Traditional Duplex |
| Environmental Conditions | Weather Resistant |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Industry Standard(s) | Certified to CSA C22.2, No. 42 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186 |
| Connectivity | Back and Side Wired |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Material - Mounting Hardware | Screw Mounting |
| Series | Commercial Specification Grade |
| Wire Size | #12 AWG to #10 AWG |
| Package Quantity | 1 |
