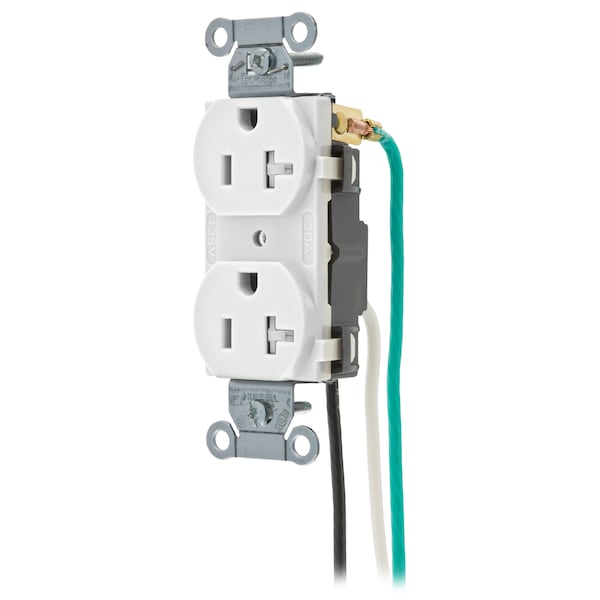

Straight Blade Devices, Receptacles, Tamper-Resistant Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, 8" Pre-Wired Stranded Leads
| Application | Commercial Specification Grade |
|---|---|
| Phase | Single Phase |
| Height | 3.28 in |
| Type | Pre-Wired, Tamper-Resistant |
| Width | 0.83 in |
| Material | Nylon |
| Color | White |
| Length | 1.32 in |
| Horsepower - Maximum | 1 |
| Style | Smooth Face |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Nema Rating | 5-20R |
| Series | Commercial Specification Grade |
| Industry Standard(s) | UL Listed To UL 498 |
| Wire Size | #12 AWG |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Material - Mounting Hardware | Screw Mounting |
| Amperage Rating | 20 A |
| Current Rating | 20 A |
| Voltage Rating | 125 V |
| Connectivity | Side Wired |
| Item Type | Traditional Duplex |
| Current / Amperage Rating | 20 A |
| Dimensions | 1.32 in x 0.83 in x 3.28 in |
| Display Size | Standard Sized Product |
| Voltage Rating Description | 125 V |
| Number Of Poles | 2-Pole |
| Dielectric Strength | Withstands 2,000V minimum |
| Wattage | 2500 W |
| Number Of Wires | 3-Wire |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Electrical - Max.Working Voltage - 125V Electrical - Temperature Rise - Max 30°C temperature rise at full rated current after 100 cycles of overload at 150% of rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Package Quantity | 1 |
